Woodpecker Performance 3
The ideal wood machine for growing manufacturers

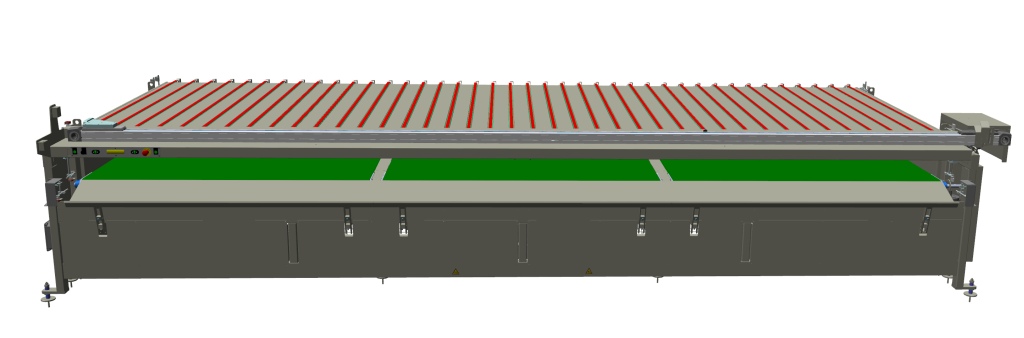

Tappeto di carico e scarico
Scopri di più
3 motori
Scopri di più
Magazzino utensili a 128 posizioni
Scopri di più
8 pinze indipendenti
Scopri di più
Monitor di controllo
Manipolatore GENIUS
Scopri di più
Scroll

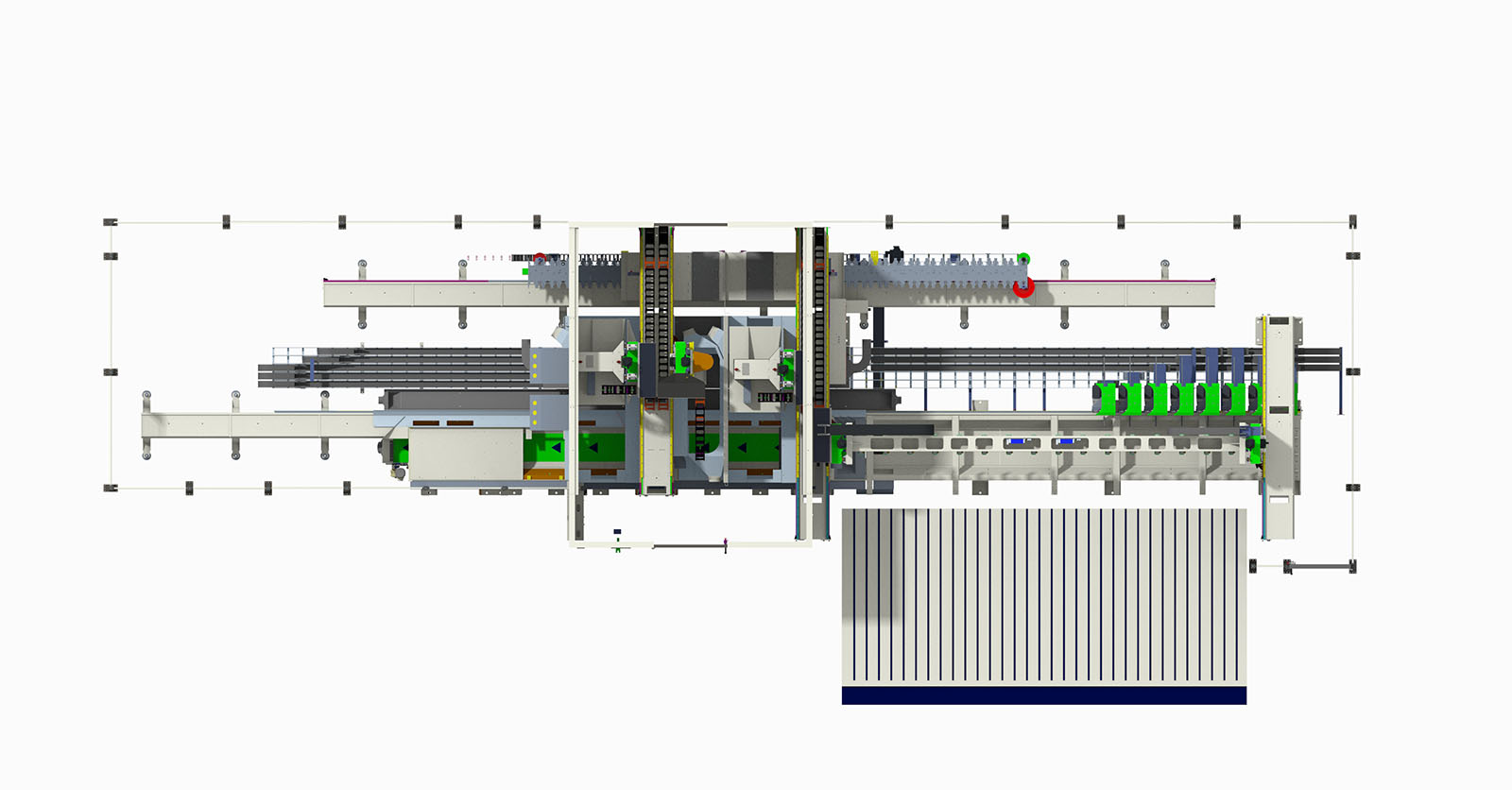

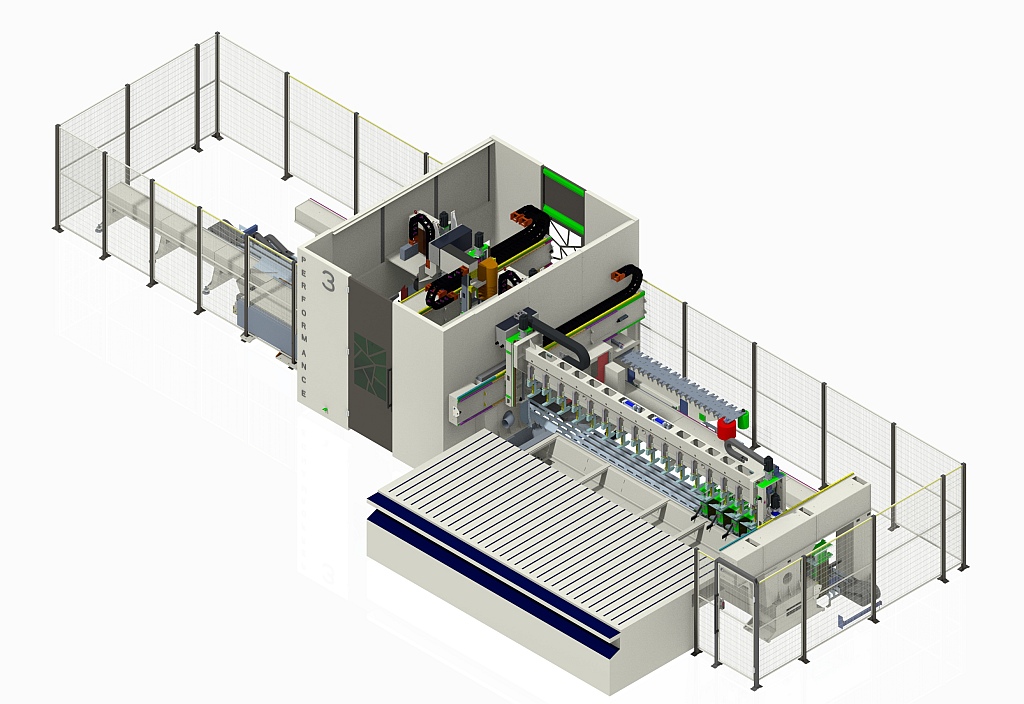

The Woodpecker Performance 3 is the perfect balance of productivity and flexibility. Ideal for wood window manufacturers with growing production needs, this working center combines precision and reliability, making every job a valuable investment.
Available customisations
Everest Intelligent Warehouse
Presetting
Picking Vertical Warehouse
Everest Warehouse: Intelligent loading system
The Woodpecker Performance 3 is equipped with the Everest modular loading system, which guarantees efficiency and automation:
- Variable capacity: from 400 to 1.200 pieces neatly stored on multiple worktops.
- Intelligent manipulator: automatically picks up the planned parts (up to 6 meters in length) and positions them for processing.
- Advanced dimensional inspection: check the specifications of the parts before machining to ensure accuracy.

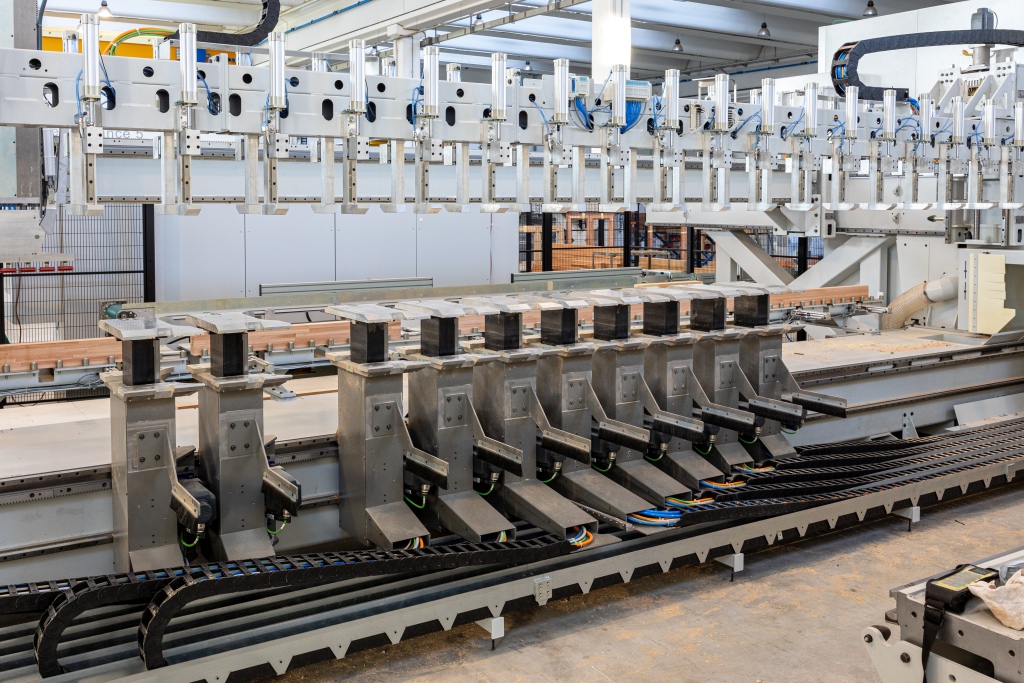

Total automation with the Genius positioner
The Genius positioner manages the automatic loading and correct positioning of workpieces vertically and horizontally.
- Automatic loading on the clamps: eliminates errors and speeds up to process
- Internal/ external passage: ensures maximum precision and flexibility in processing different workpieces.

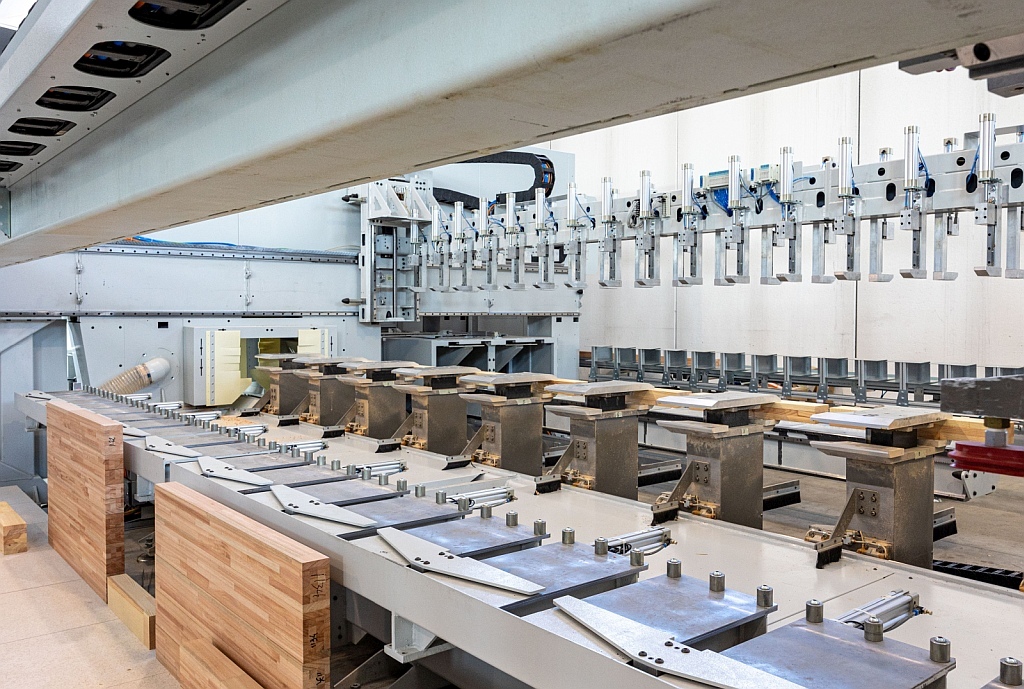

Indipendent lockng clamps
This wood machine is equipped with 8 multi-channel CNC clamps, which offer unparalleled operational flexibility, allowing the clamping of workpieces on both the inside and the outside.
- Total independence: each clamp is managed as a separate axis, improving precision and production capacity.
- High speed and acceleration: up to 150 m/min of speed and 6 m/s² of acceleration, to increase production efficiency.
Wood machine with solid and reliable structure
- The machine’s monolithic base is designed withFEM analysis (Finite Element Analysis), guaranteeing stability and reliability even during the most demanding operations.
- CE-compliant perimeter protection: to ensure the operator’s safety during each phase of work.

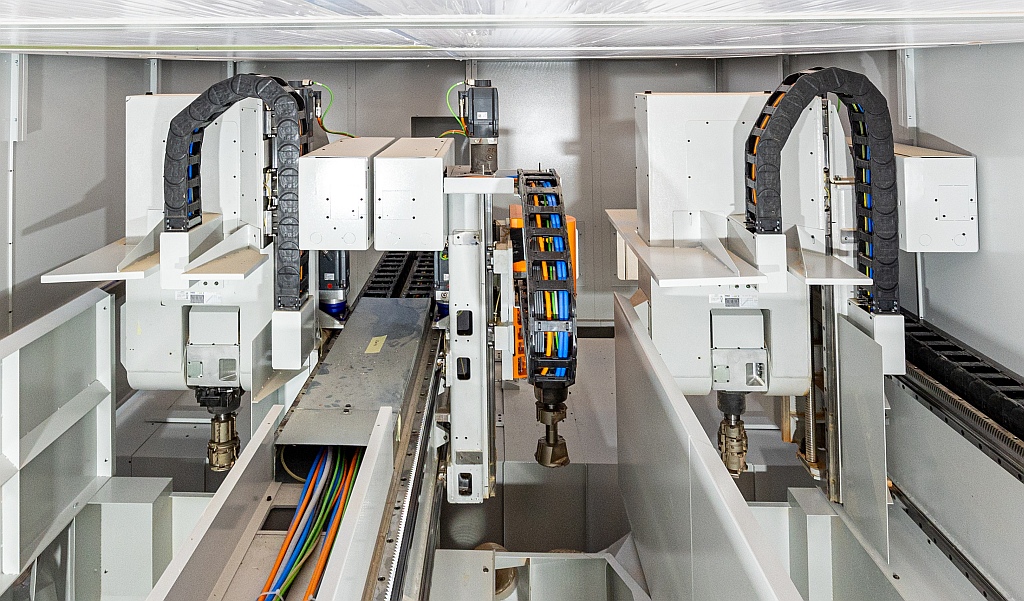

Working units: versatility and power
The Woodpecker Performance 3 is equipped with three working units, each designed to meet the most complex requirements:
- Two T5/S Head: vertical electrospindle of 22 Kw (with tilting axes).
- One T1 Head: vertical electrospindle of 22 kW.
This configuration allows you to perform complex machining on multiple parts at the same time, increasing productivity without compromising quality. You can choose any type of tool to be inserted in each working unit.

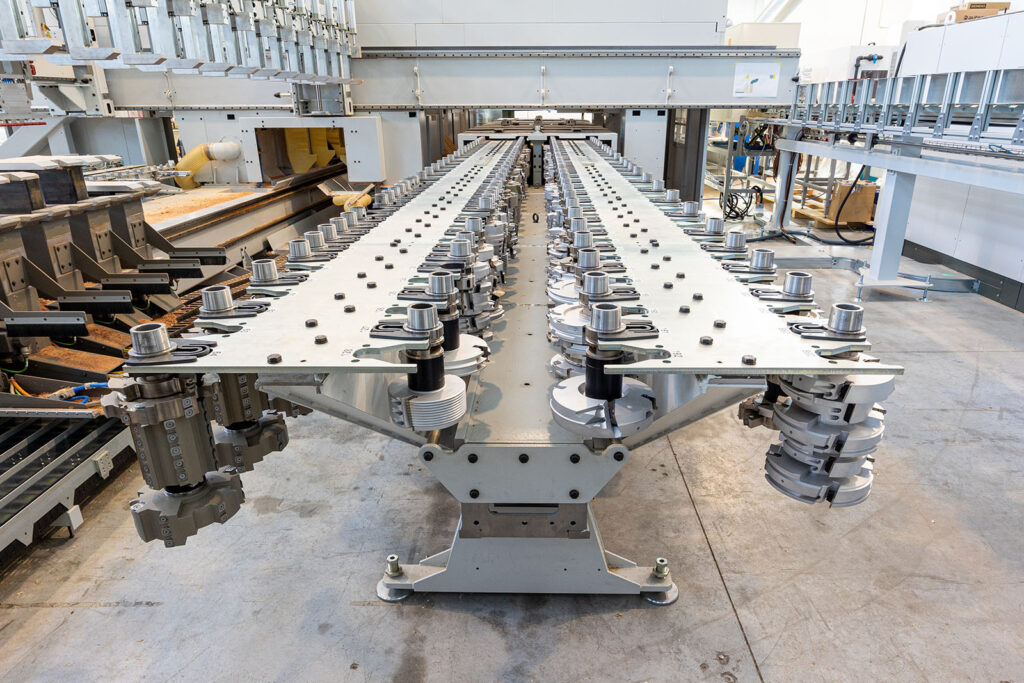

Tool storage: organisation and cleaning
The tool storage of this wood machine offers impeccable organization and advanced protection:
- Modular capacity: from 128 to 256 position, to handle a large number of tools.
- Advanced cleaning systems: brushes, blowers and protective housing keep tools free of dust and chips.
- Space optimization: a structure designed to last overtime, ensuring efficiency and reliability

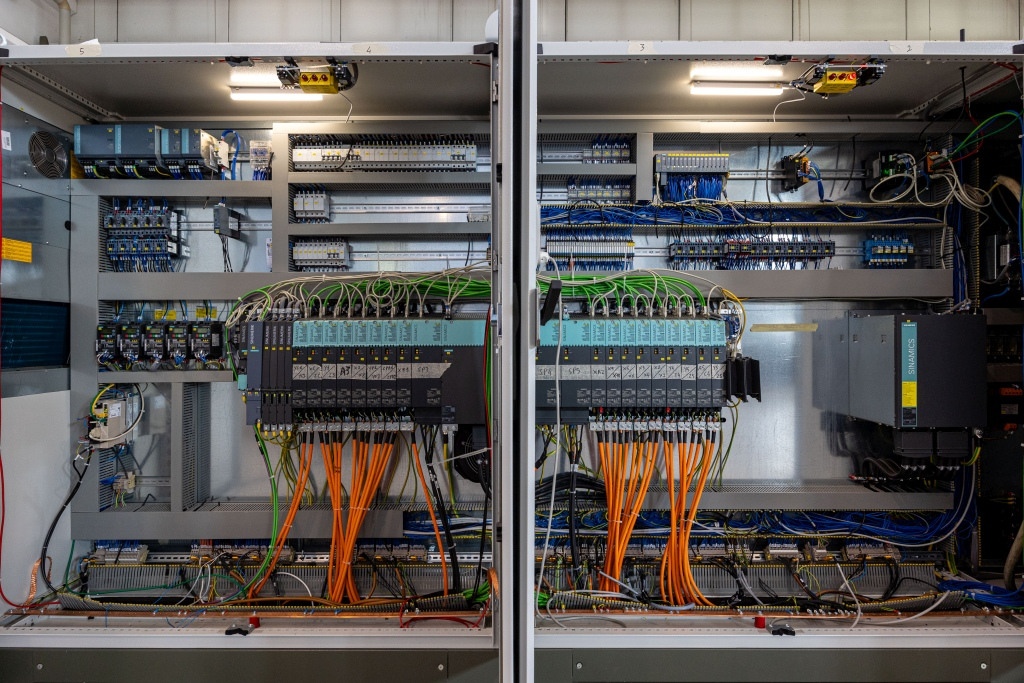

Numerical control SINUMERIK ONE
The machine is equipped with the advanced numerical controlSINUMERIK ONE from Siemens, which represents the ultimate in CNC technology:
- Integrated PLC SIMATIC S7-1500F: cycle times up to 10 times faster than previous mode.
- Increased productivity: improves speed, flexibility and overall machine efficiency.
Why choose Woodpecker Performance 3?
Perfect for growing volumes
It balances flexibility and productivity for expanding businesses.
Advanced automation
Smooth handling of loading, processing and unloading to optimise production flow.
Guaranteed accuracy
Designed to deliver flawless results, even on complex machining operations.
Contact us today to find out how Woodpecker Performance 3 can transform your wooden window production!
