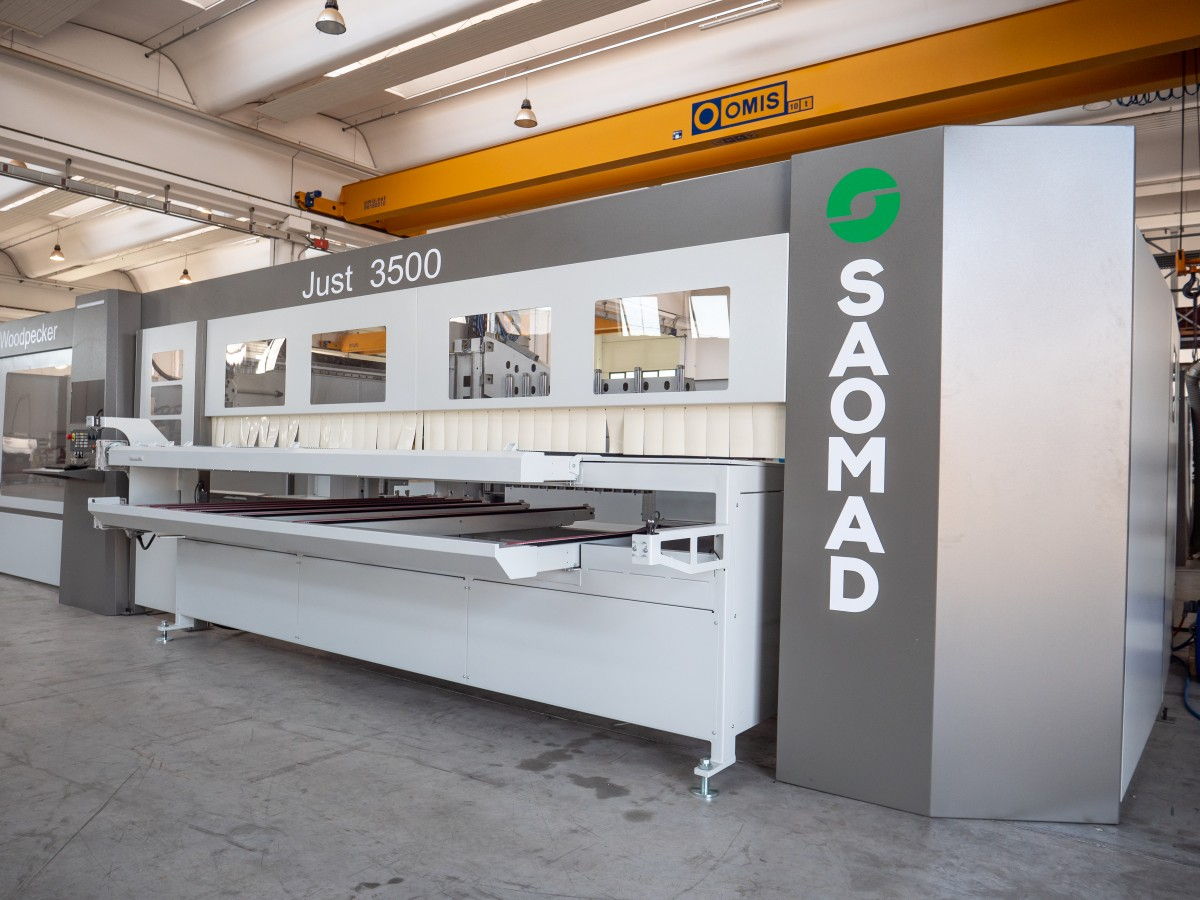

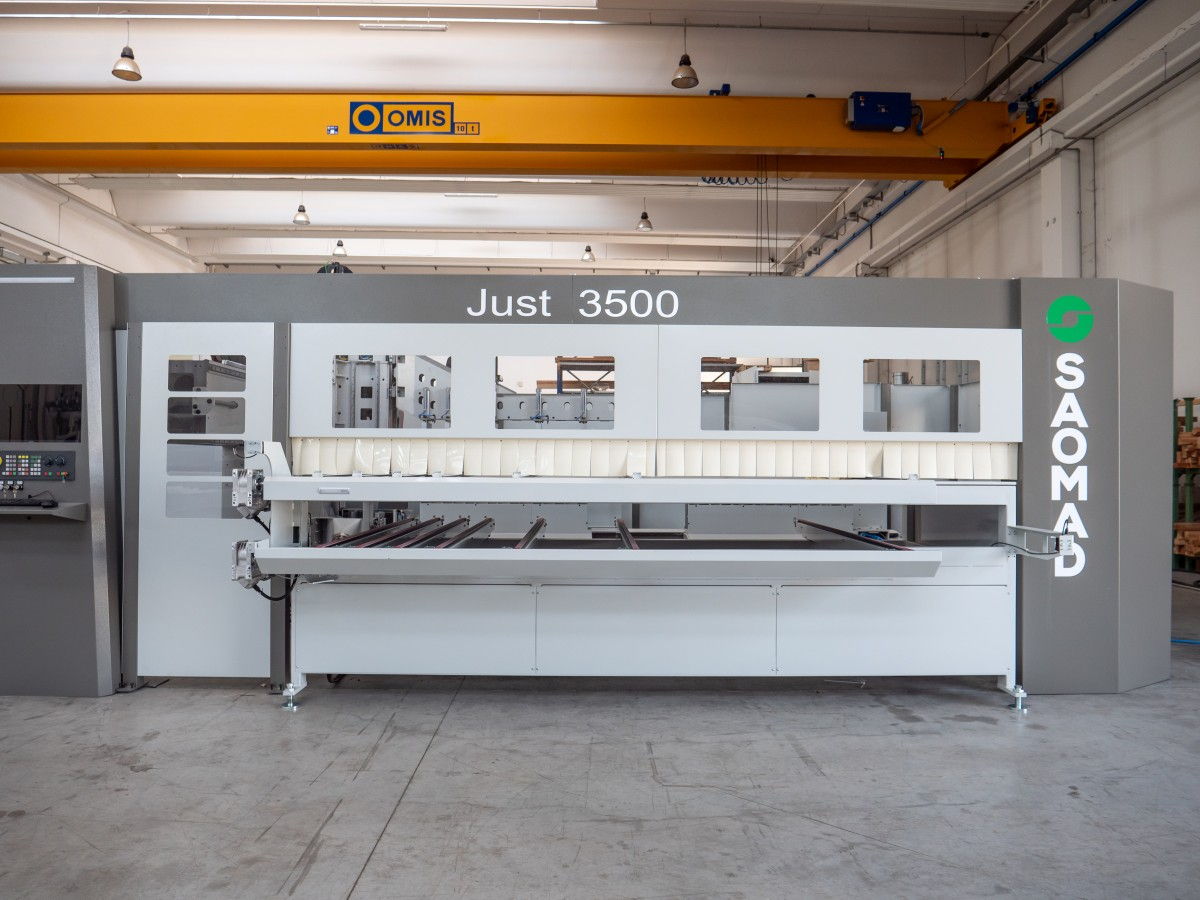

Woodpecker Just 3500
CNC machining centre: the ideal solution for wood door and window making craftsmen and small-scale industries
Woodpecker Just 3500 is the CNC machining centre ideal for wood door and window making craftsmen and small-scale industries seeking flexibility and versatility. Woodpecker Just 3500 can produce up to 15 doors/windows per day at very high processing speed and with extreme precision.
The modern production process allows Woodpecker Just 3500 to operate without constant operator supervision. The “Total Real Time” concept allows to plan several daily shifts without affecting reliability and execution quality.
The advantages provided by this CNC machining centre are:
- Unmanned processing
- Simple and intuitive machine operation
- Unlimited production mixes
- Large number of always available tools
- Small size and low energy consumption
Work station

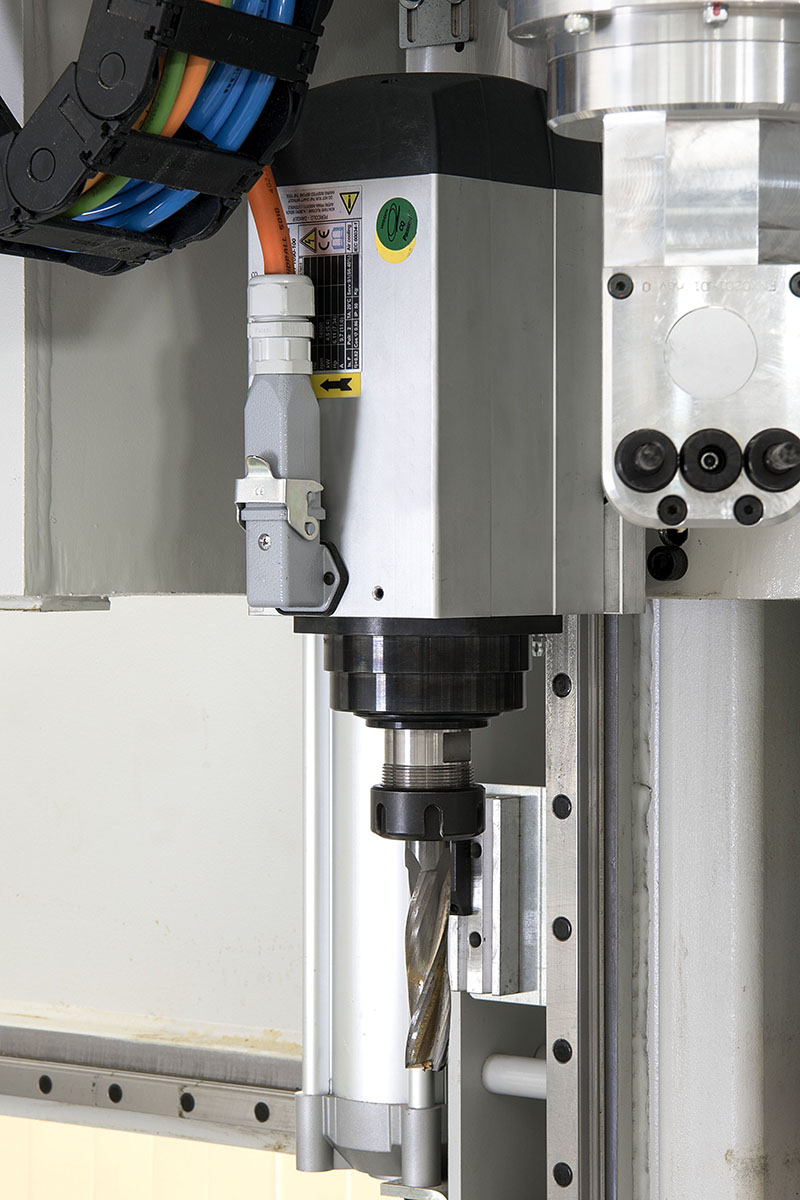

Multi-functional CNC machining centre with independent electro-spindle capable of high power outputs, and independent operating units for drilling and milling operations.

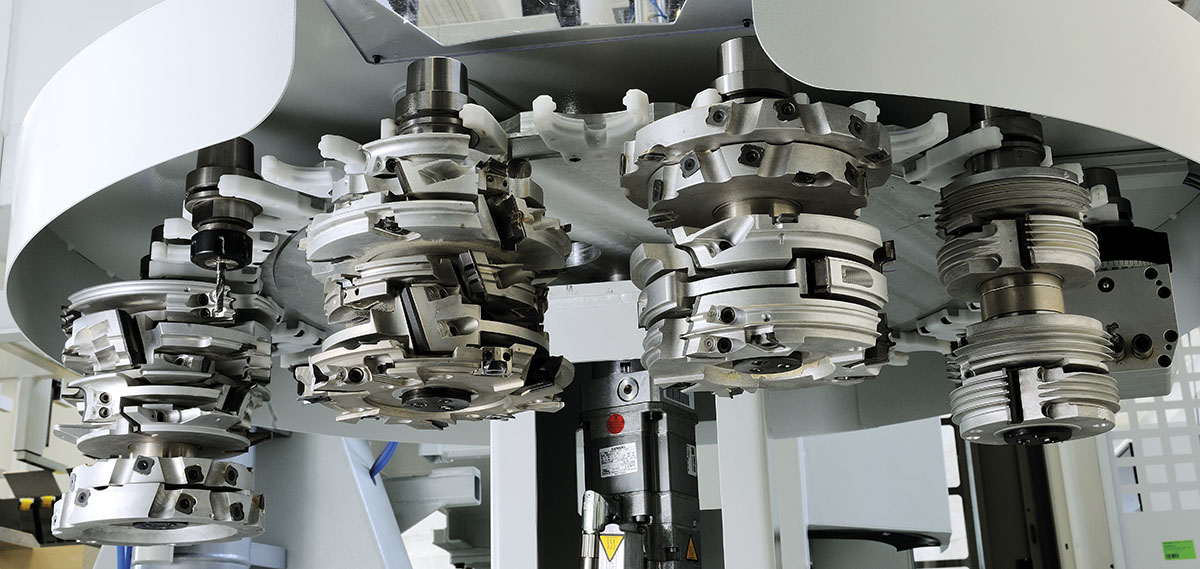

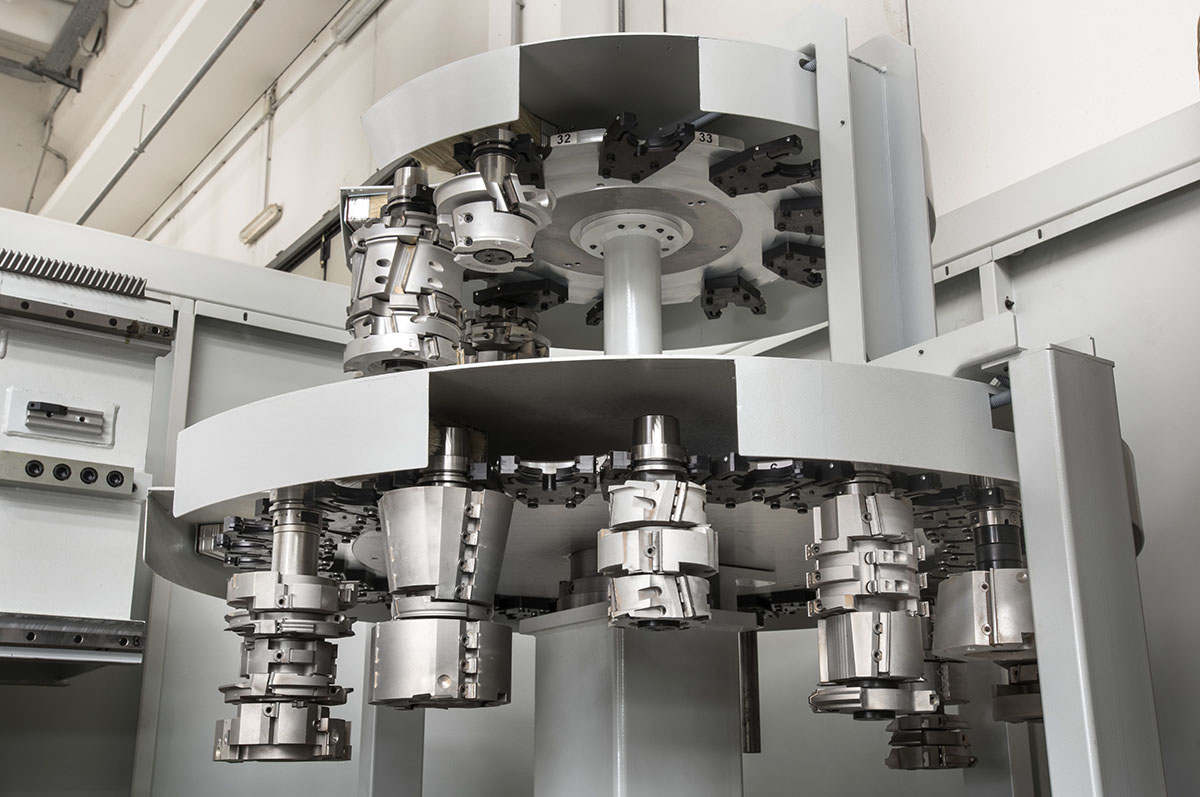

The HSK-63E quick-release toolholder allows to insert milling and angular tools via automatic, precise and safe tool changing.

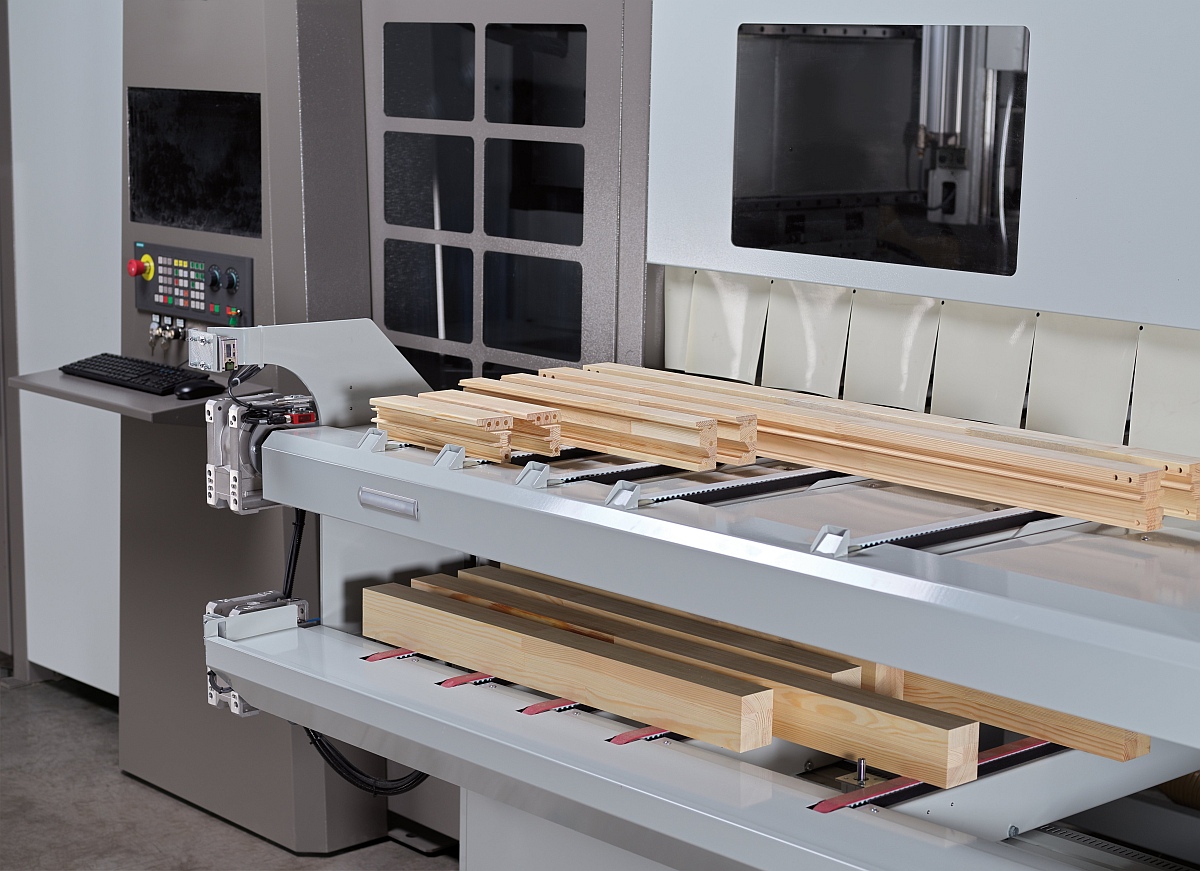

Loading/Unloading unit
Integrated and automatic Loading/Unloading bufferthat works autonomously without the need for manned supervision: the operator is therefore free to perform other tasks such as the assembly of the pieces at the press machine, thereby improving turnaround time.
Clamps
Piece locking using multiple clamps ensures extreme precision, grip and stability of the pieces during processing.
The standard length of the clamp allows to work a single piece up to maximum 3,500 mm long (internal tenon), or two pieces each max. 1,500 mm long simultaneously.
Software interface
An intuitive built-in software, specifically designed by SAOMAD, runs the CNC machining centre with absolute precision. It can be connected online to CAD/CAM programs, thereby allowing to make any kind of door or window. It is a system open to new upgrades or to specific applications.
