Kairos 620
Kairos 620 is an innovative carpentry CNC machine for processing beams, roofs, pergolas and wooden houses. It is designed in a single, solid monobloc structure capable of machining beams up to a maximum size of 620 x 300 mm and lengths of up to 17 m, if not more. In addition, the 5-axis technology and the tool changer allow a wide range of machining operations, making the machine even more flexible. With the Kairos 620, there is no limit to your ideas!
Its structure and configuration have been optimised thanks to an analysis based on FEM (Finite Element Method) simulation techniques, which has defined its rigidity, vibration damping capacity, machining stress absorption and complete machine stability.
This carpentry machine ensures:

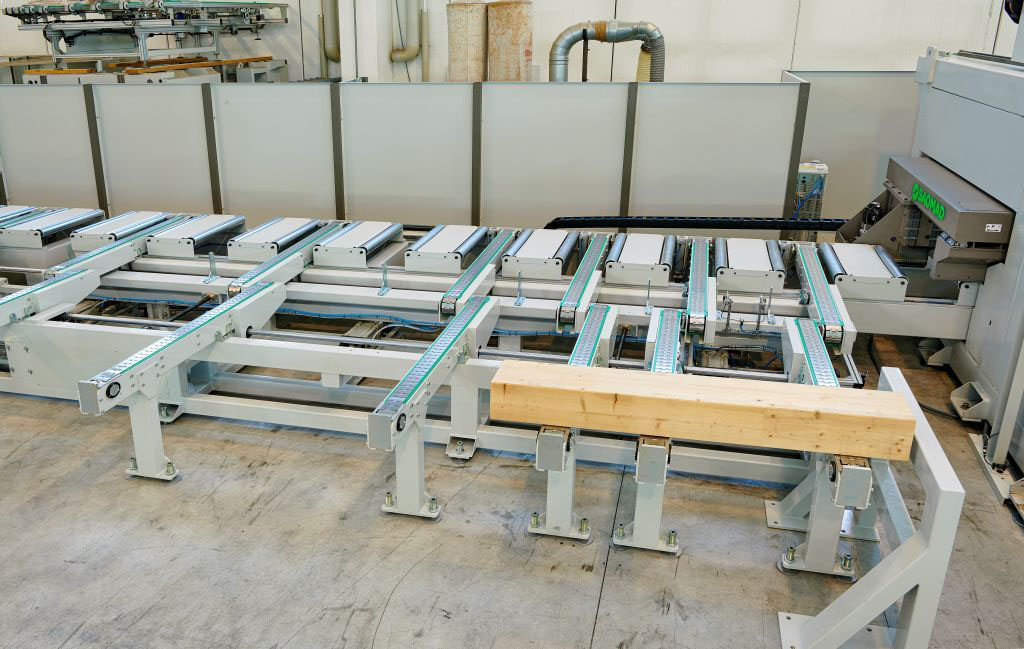

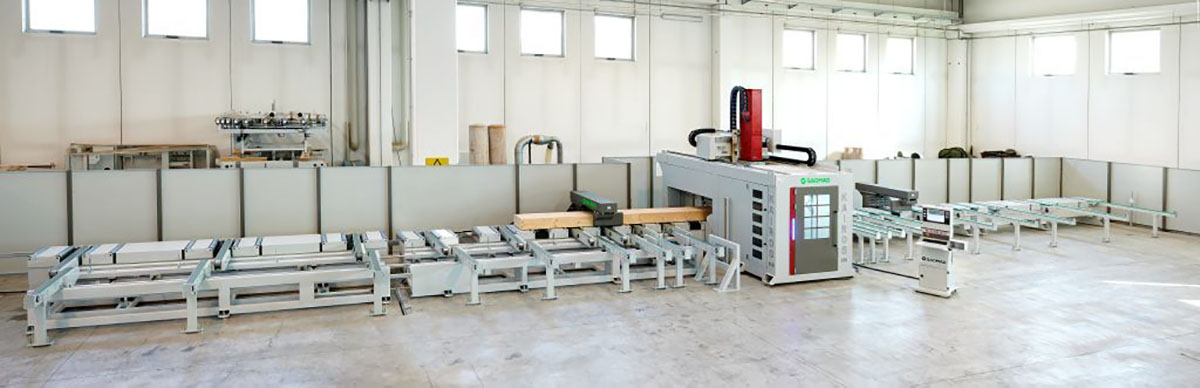

The load transfer system, located on the left side of the machine, allows to load a set of beams simultaneously and automatically, quickly and accurately.
The unload transfer system is located on the right side of the machine where the processed pieces are stacked at the end of the process. Kairos 620 can work in a completely autonomous manner while the operator works on other tasks.

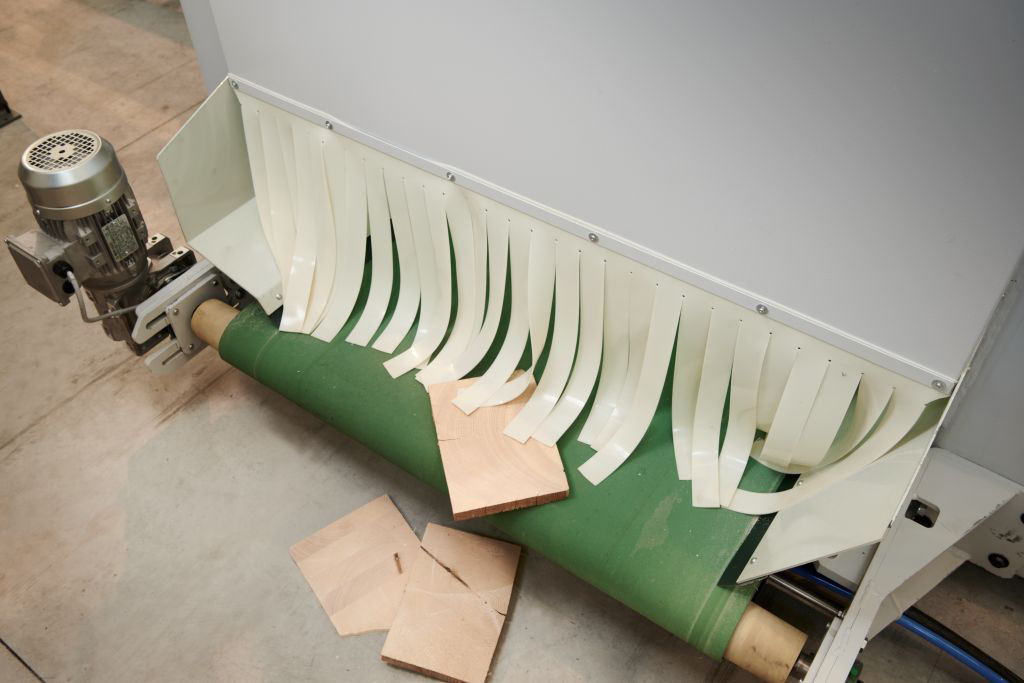

For greater cleanliness, the chips and processing waste are removed via a wide conveyor belt located underneath the working area.

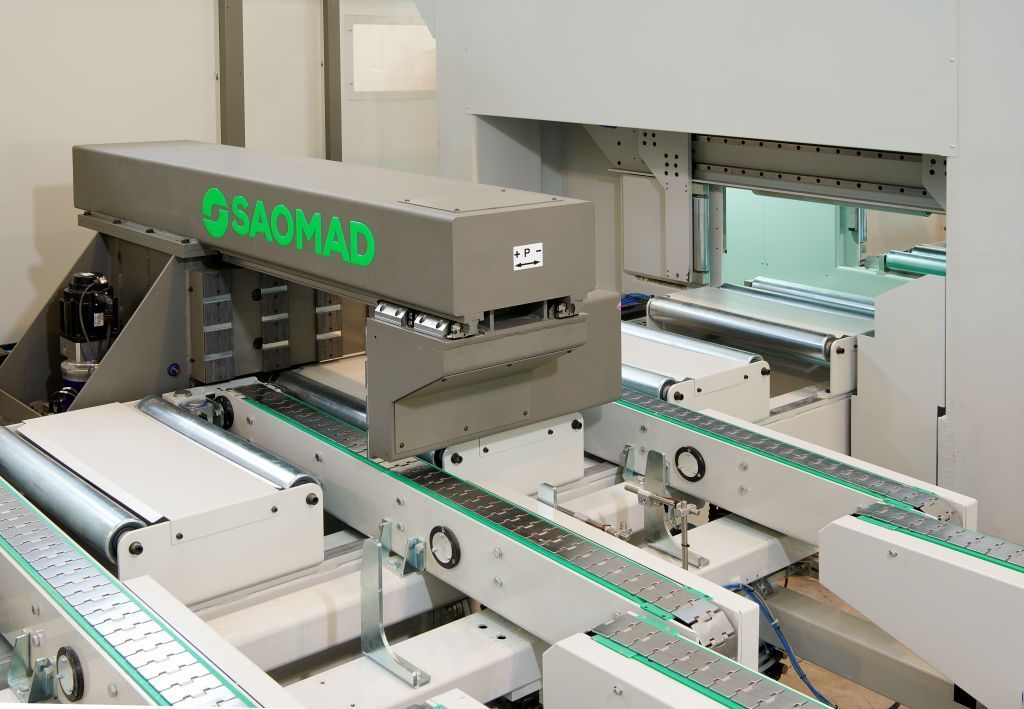

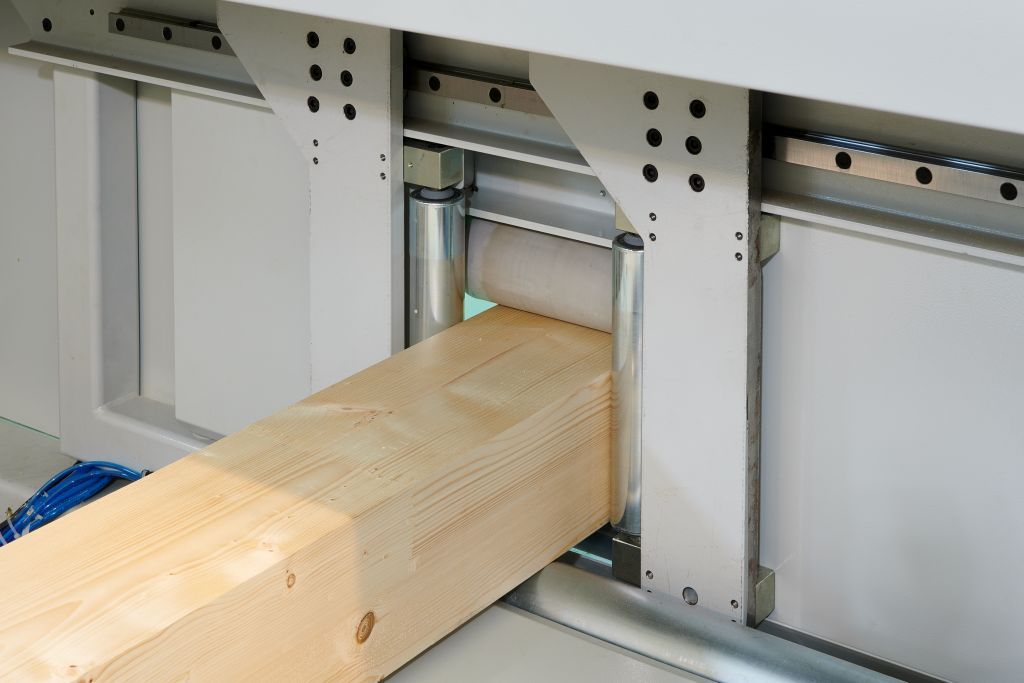

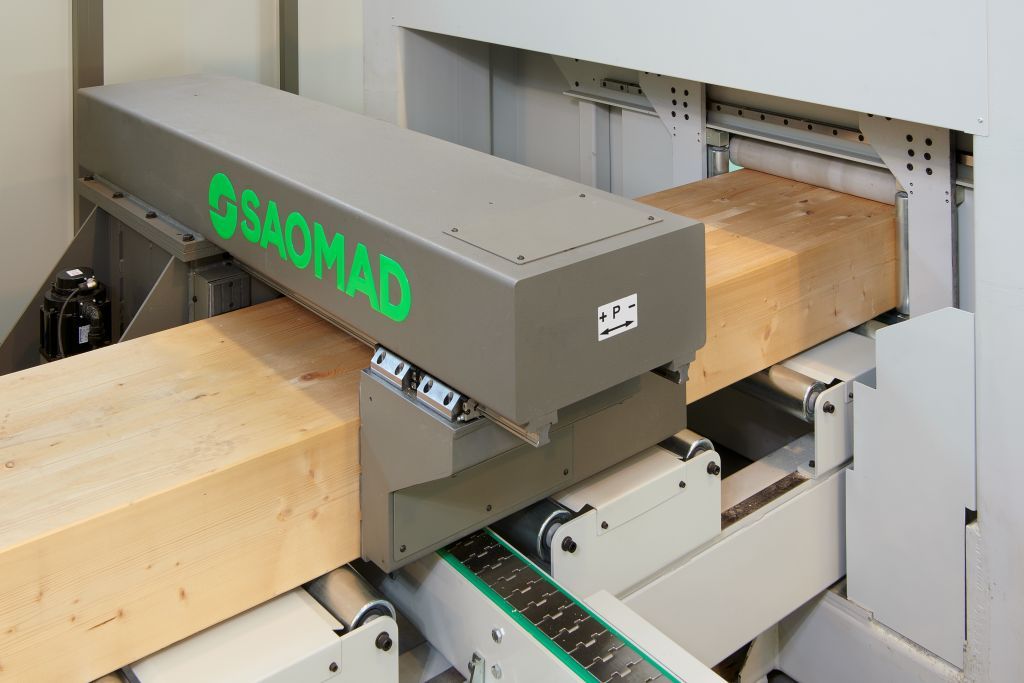

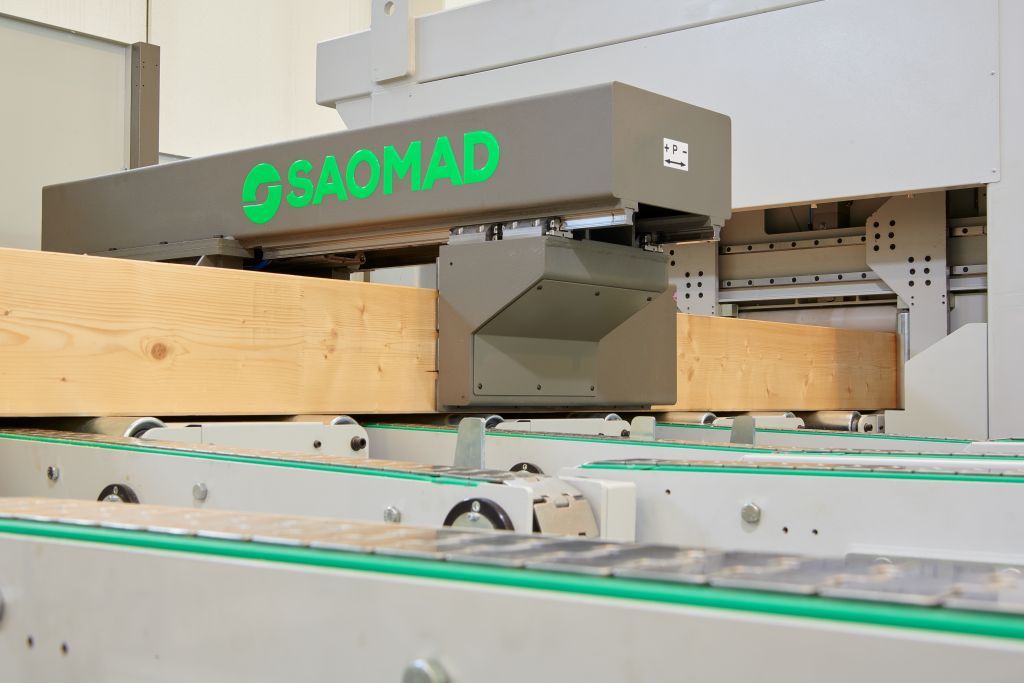

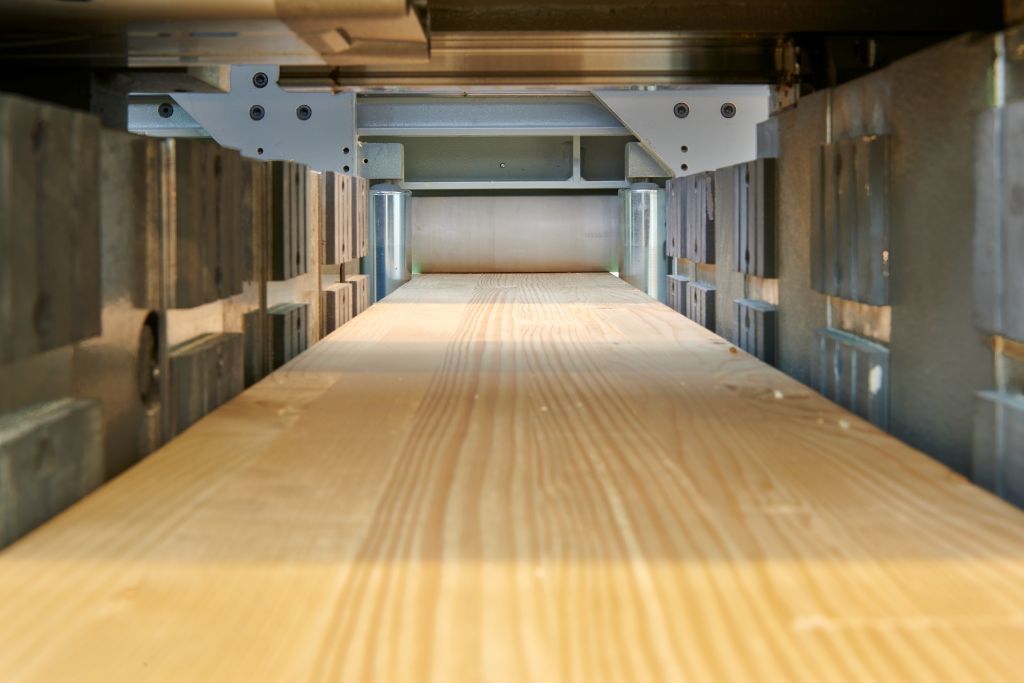

Kairos 620 has a double dragging INPUT-OUTPUT automatic clamp with vertical presser for correct piece positioning. It also has side locks for supporting the wood piece and for preventing unnecessary vibrations, allowing workpieces to be machined from all angles and inclinations.
Among the carpentry machines available on the market, Kairos is a top-end model.

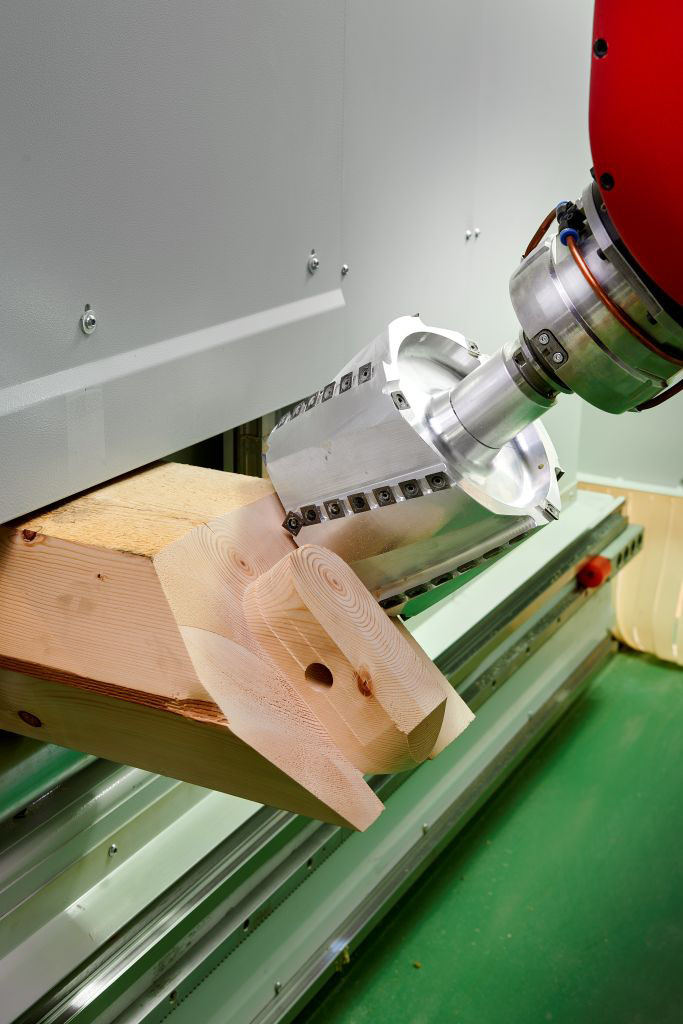

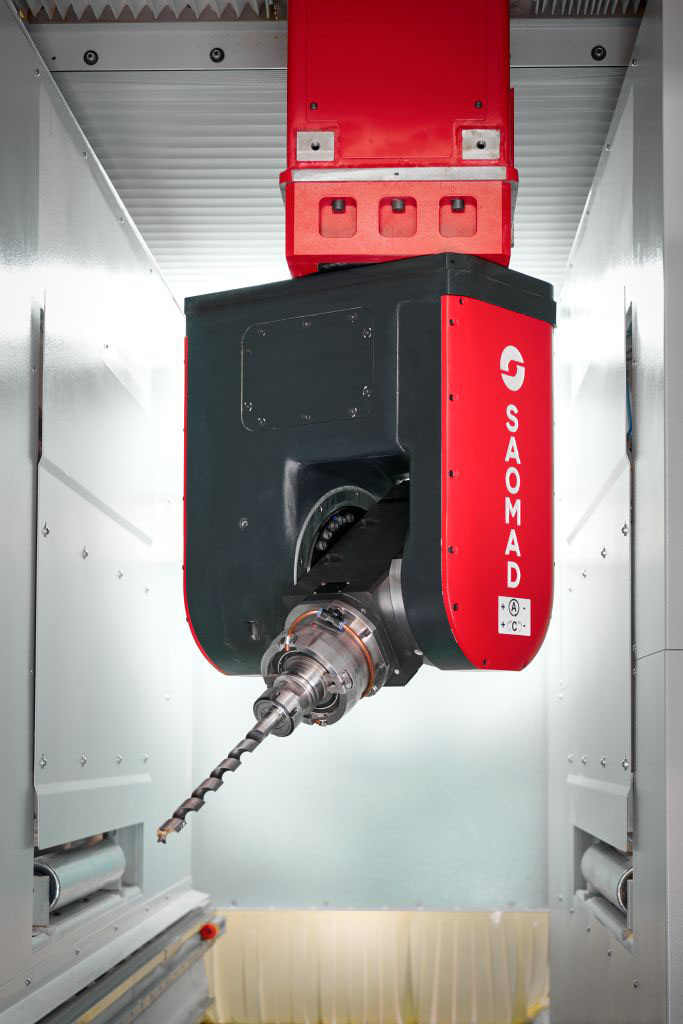

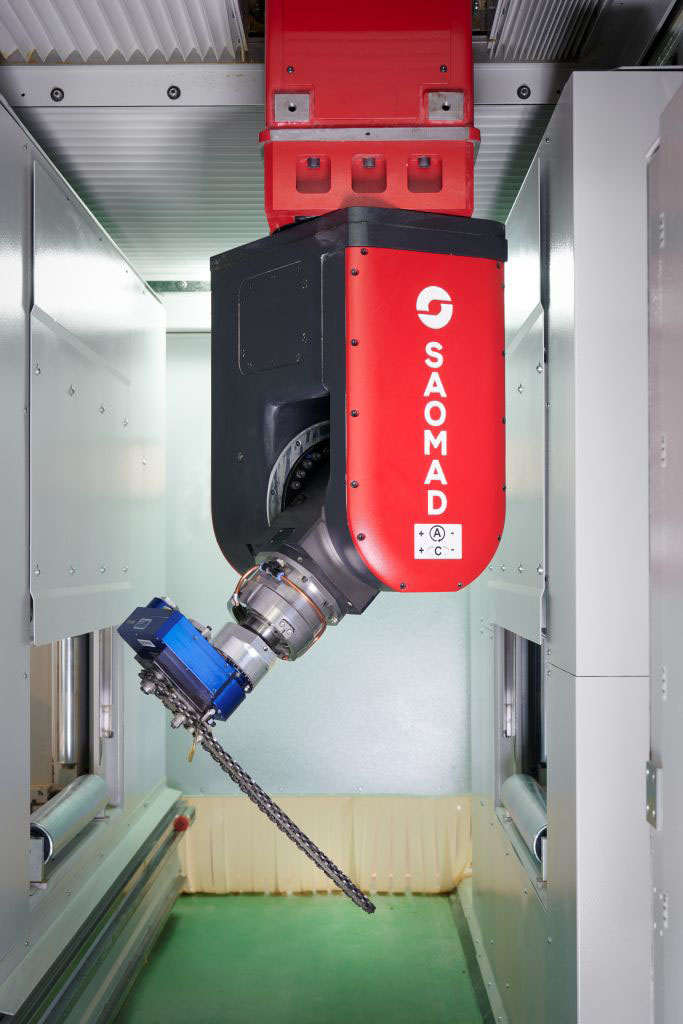

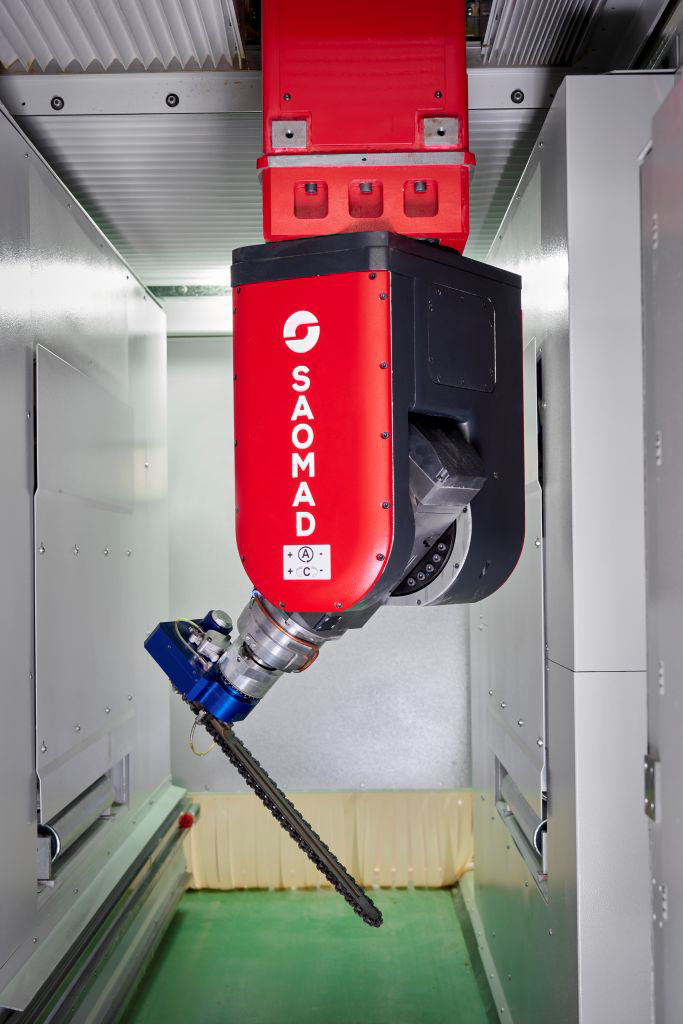

This is because the machine has an A+C axis, 15 kW power in S1, water-cooled electro-spindle featuring 245° radial rotation in C axis and 110° horizontal in A axis.

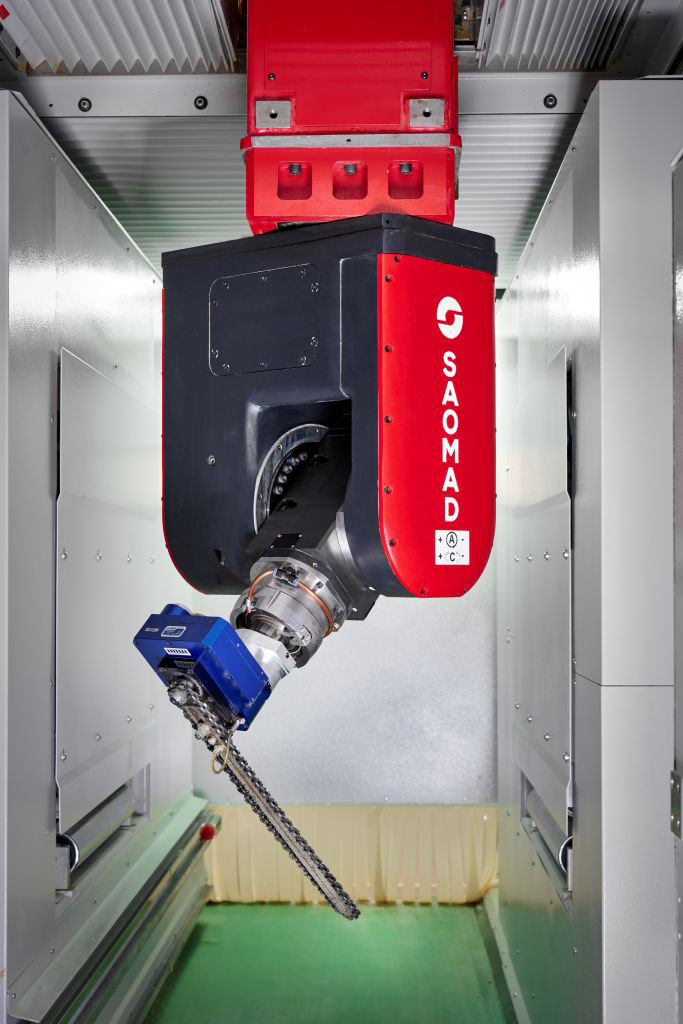

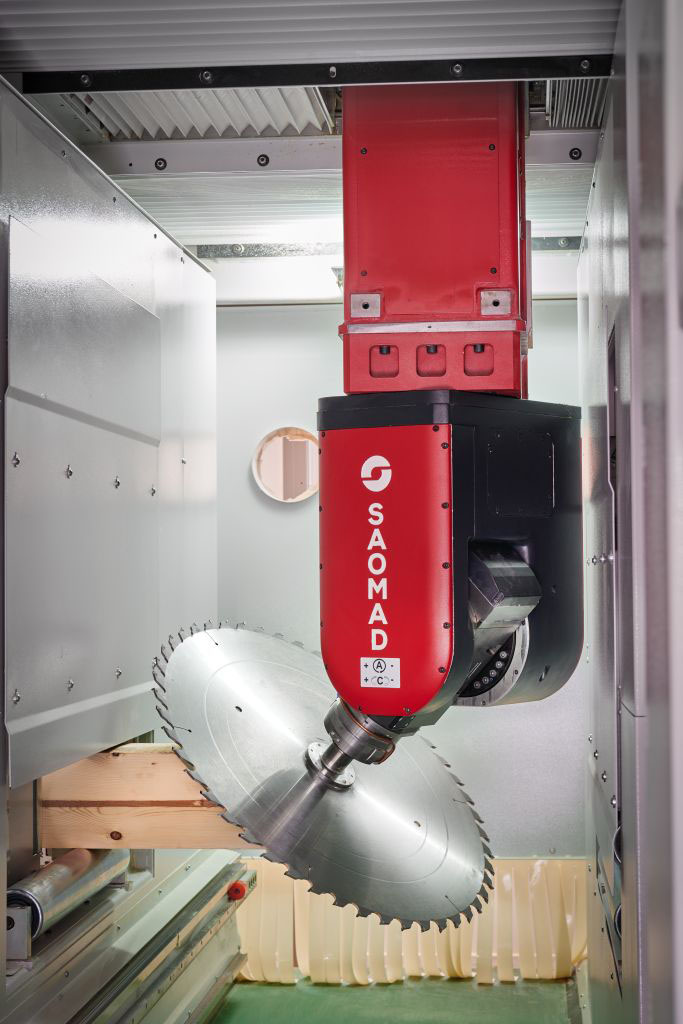

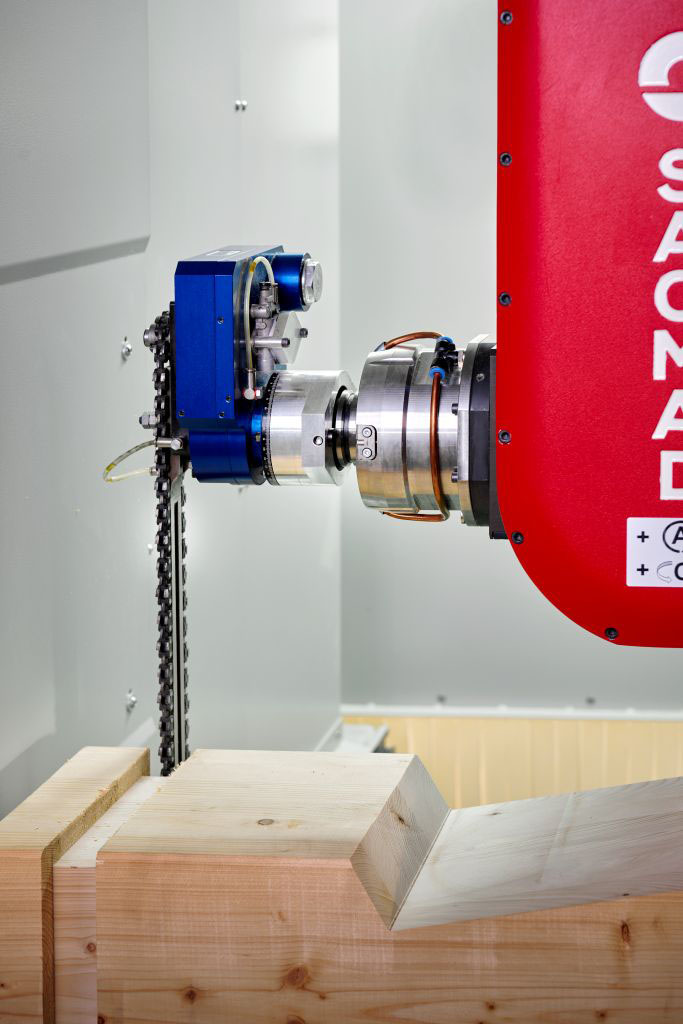

The electro-spindle can be turned in any direction, making it suitable for milling, drilling and profiling using the same tool no matter what their position is.

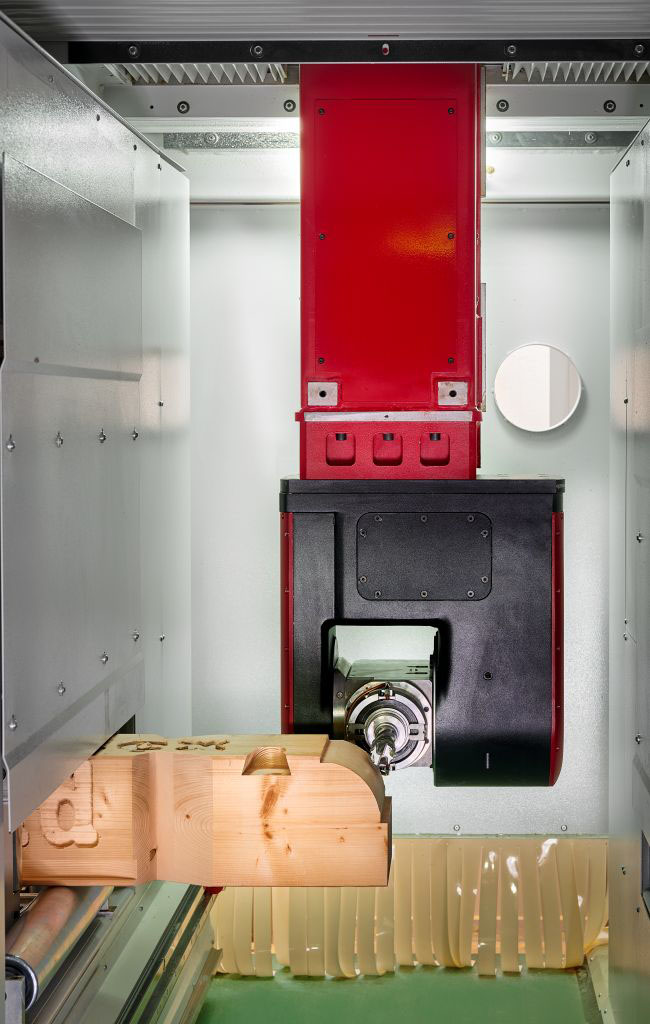

The electrospindle is contained by a cabin with total enclosure, top and side, which allows dust to be collected and noise emissions to be reduced, ensuring extreme safety during work.

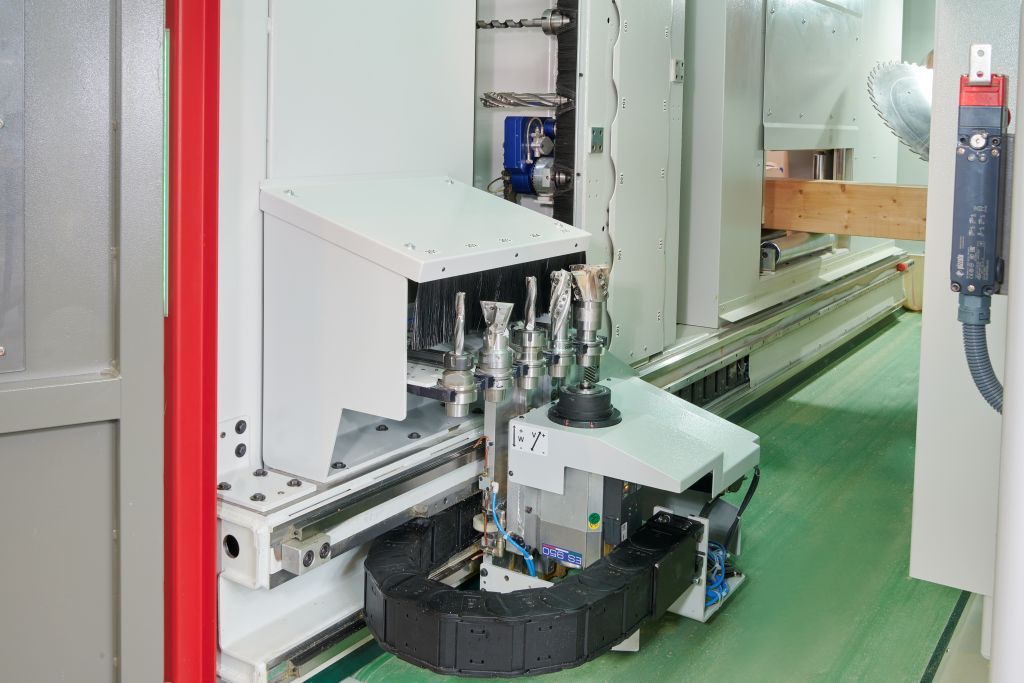

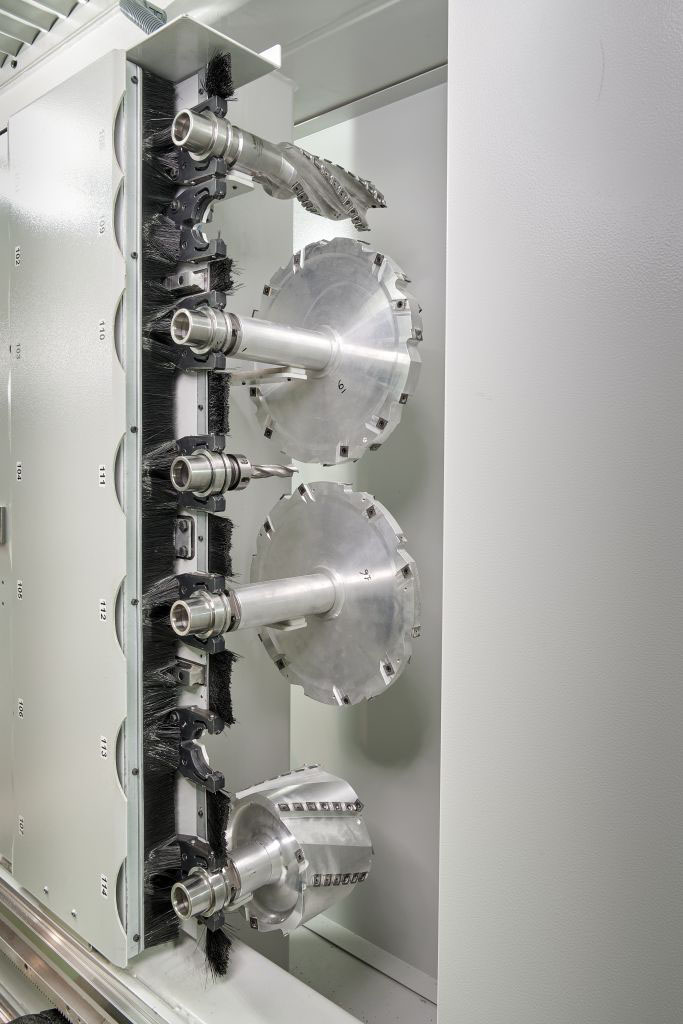

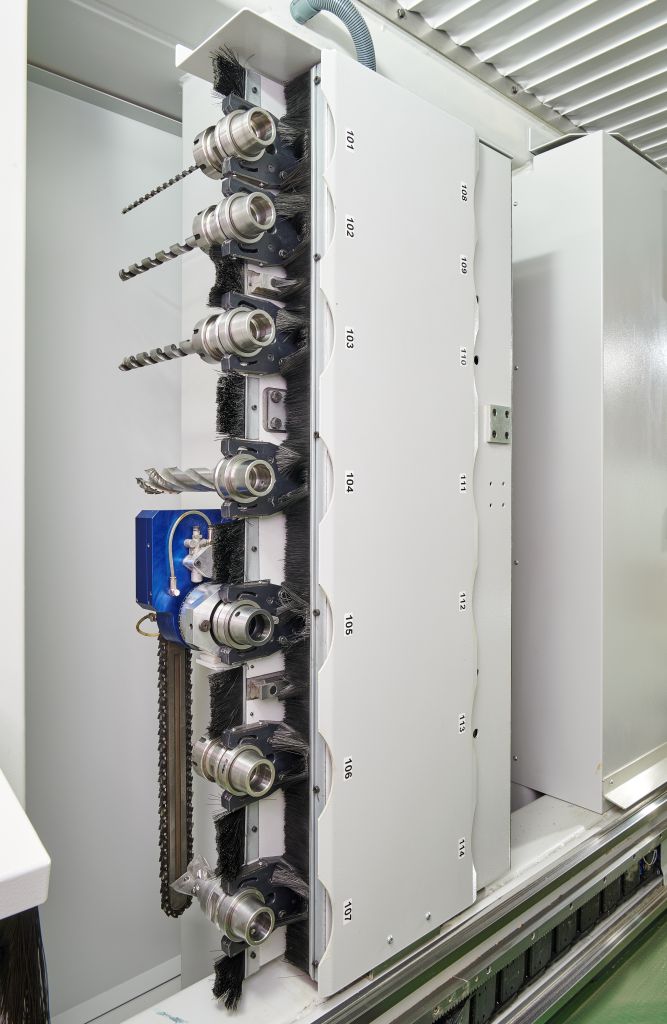

Kairos 620 is equipped with a 13-slot tool magazine designed to ensure maximum speed of tool change. It also features the HSK-63E tool holder, which allows the best finish to be obtained depending on the type of tool being used.

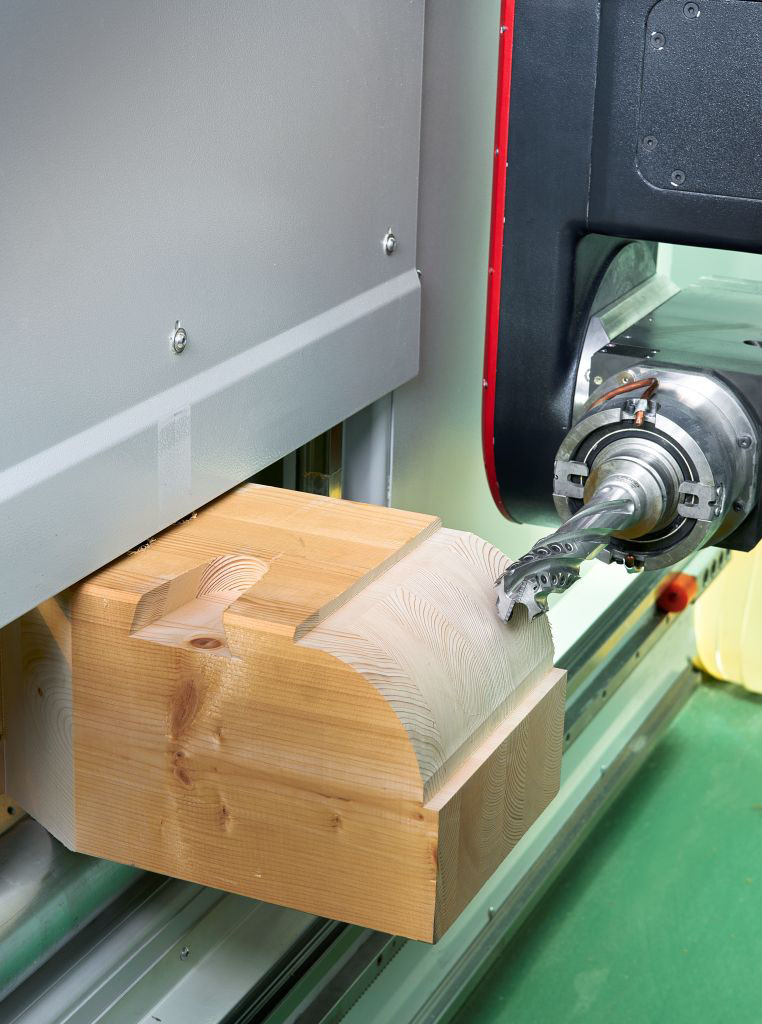

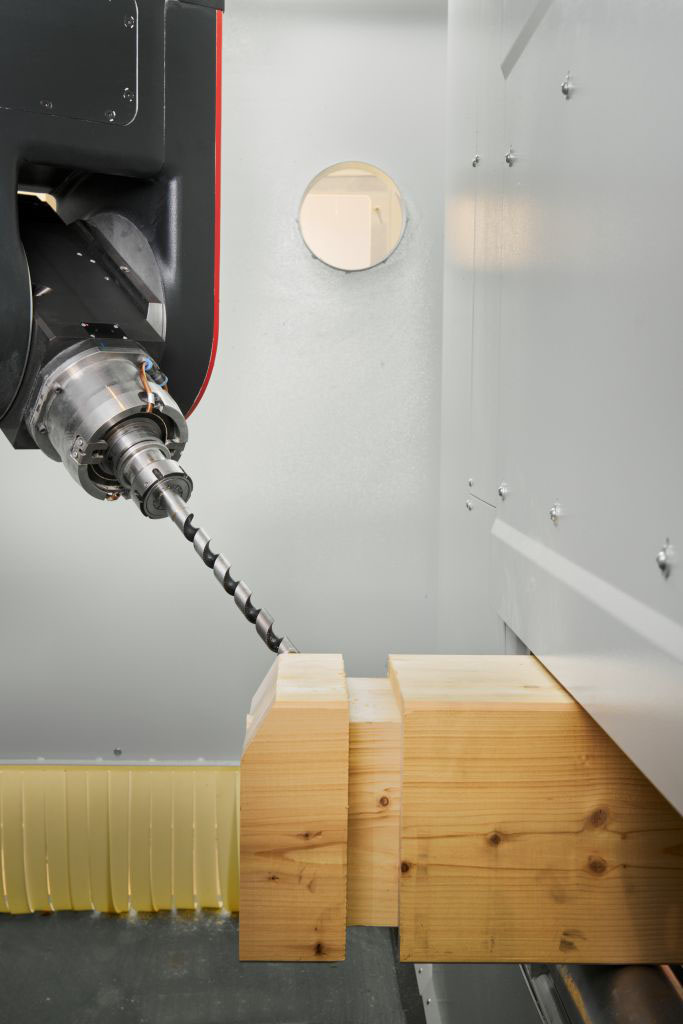

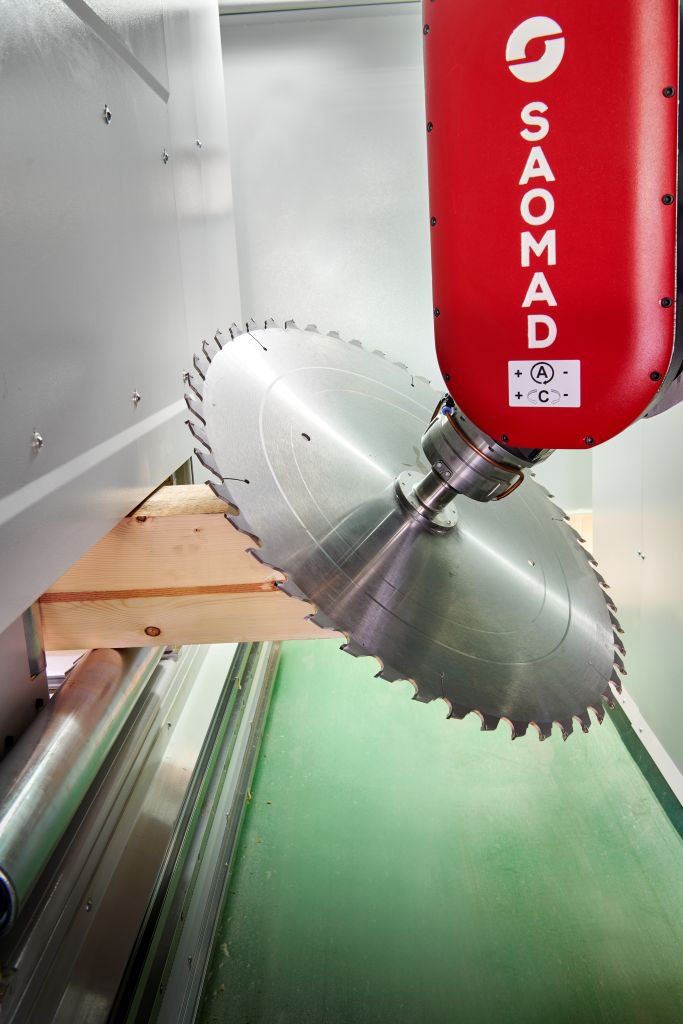

Tools are selected and managed via the production software programme. With the proper tool it is possible to perform many types of processes, such as chamfering, grooving, drilling, milling, carving, marking and tracing.

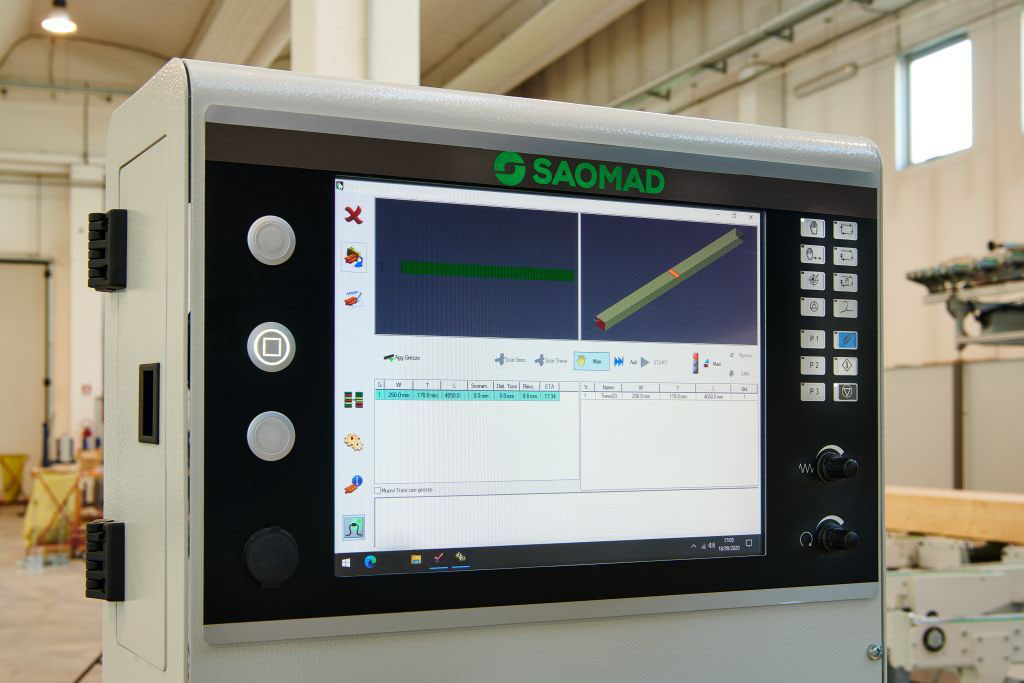

Kairos is run by integrated and intuitive software that can interface with all European management software products. It can also import data in BTL and BIM format from all CAD/CAM products of the timber housing construction sector.
Sinumerik One numerical control
Sinumerik One is characterised by its ease of networking with the machine park and offers the possibility of real-time control and modification of all operating parameters. It is also an open system for further expansion or specific applications.
