Woodpecker Performance 5
The top-of-the-range machining center for wooden windows and doors
Exhaust mat
Find out more
5 engines
Find out more
256-position tool magazine
Find out more
10 independent grippers
Find out more
Control monitors
EVEREST Warehouse
Find out more
Automatic loading
GENIUS manipulator
Find out more
Scroll
The Woodpecker Performance 5 is the ultimate solution for industrial window manufacturers aiming for maximum speed, production capacity and automation. This working center for wooden frames represents technological excellence, designed to handle large volumes with precision and reliability.
Available customisations
Everest Intelligent Warehouse
Presetting
Picking Vertical Warehouse

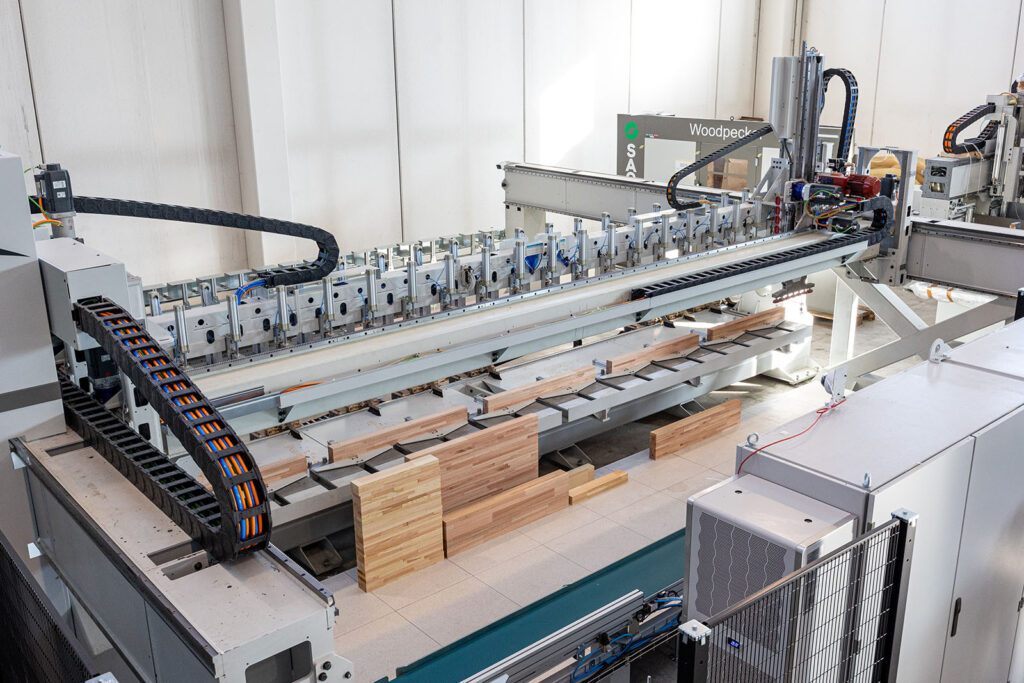

Everest Warehouse: intelligent loading system
- Variable capacity: from 400 to 1.200 pieces neatly stored on multiple worktops.
- Intelligent manipulator: automatically picks up the planned parts (up to 6 meters in length) and positions them for processing.
- Advanced dimensional inspection: check the specifications of the parts before machining to ensure accuracy.

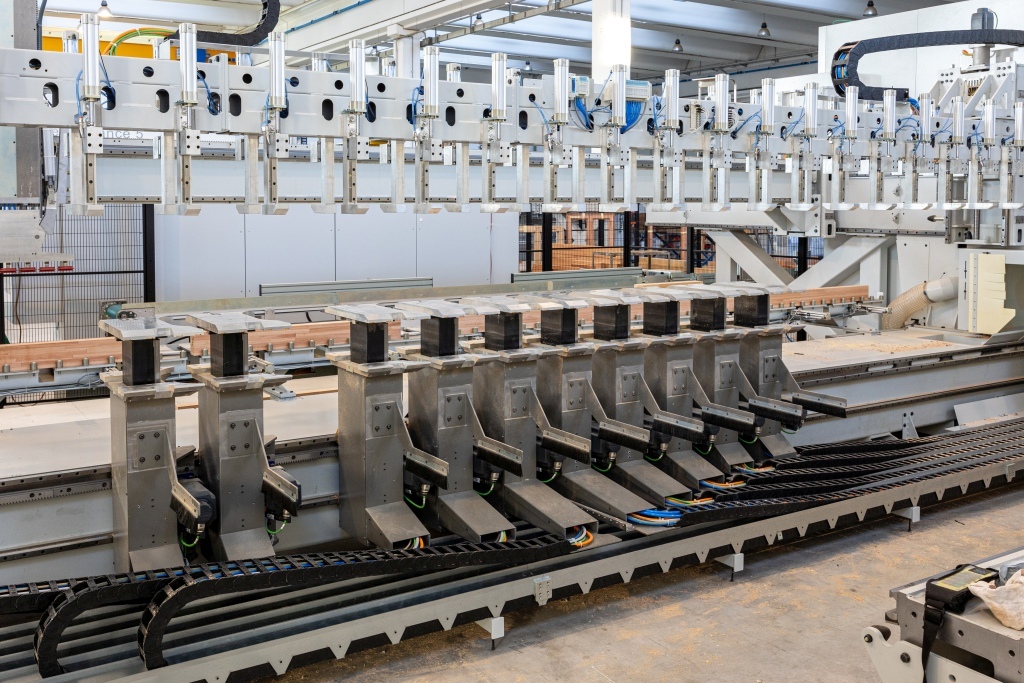

Total automation with Genius positioner
The Genius positioner handles the automatic loading and correct positioning of workpieces vertically and horizontally.
- Automatic loading on the clamps: eliminates errors and speeds up to process.
- Internal/ external passage: ensures maximum precision and flexibility in processing different workpieces.

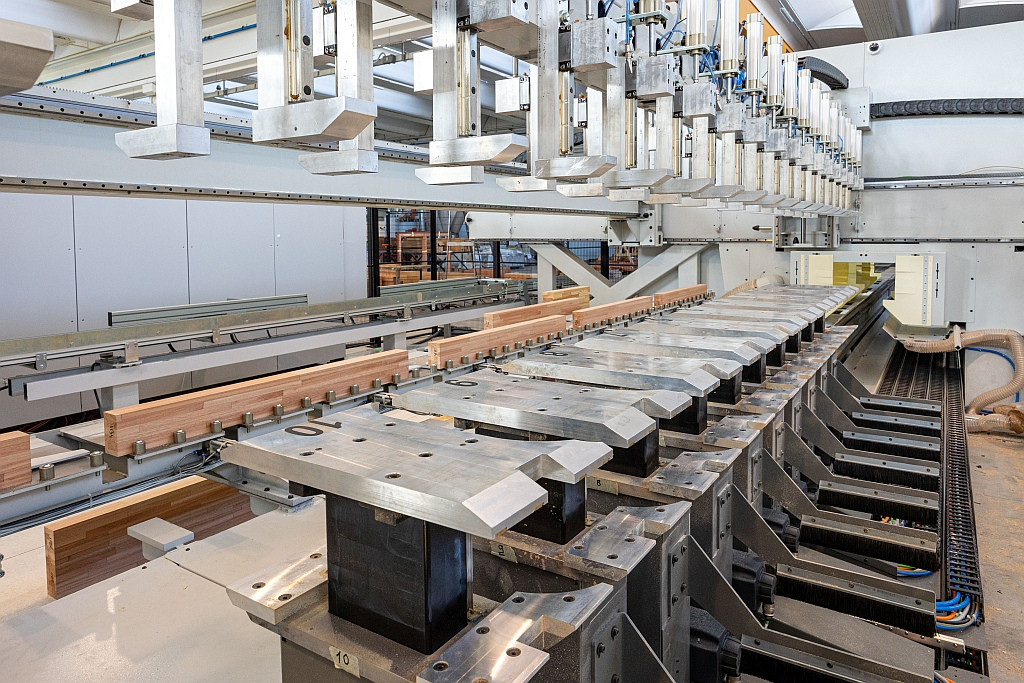

Independent locking clamps
This machining center for wooden windows and doors is equipped with 10 multi-channel CNC clamps, which offer unparalleled operational flexibility, allowing the clamping of workpieces on both the inside and the outside.
- Total independence: each clamp is managed as a separateaxis, improving precision and production capacity.
- High speed and acceleration: up to 150 m/min of speed and 6 m/s² of acceleration, to increase production efficiency.
Solid and reliable structure
Designed with FEM analysis (Finite Element Analysis) the machine’s monolithic structure guarantees strength and stability, even during complex high-speed machining

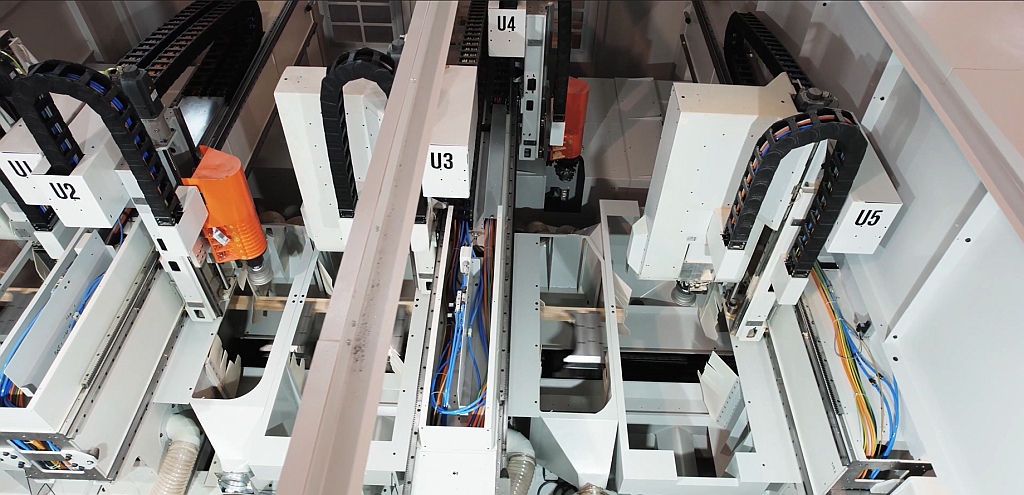

Working units: versatility and power
The Woodpecker Performance 5 is equipped with threeworking units, each designed to meet the most complex requirements:
- Three T5/S Head: vertical electrospindle of 22 Kw (with tilting axes).
- One T1 Head and one T2 Head: vertical electrospindle of 22 kW.
This configuration allows you to perform complex machining on multiple parts at the same time, increasing productivity without compromising quality. You can choose any type of tool to be inserted in each working unit.

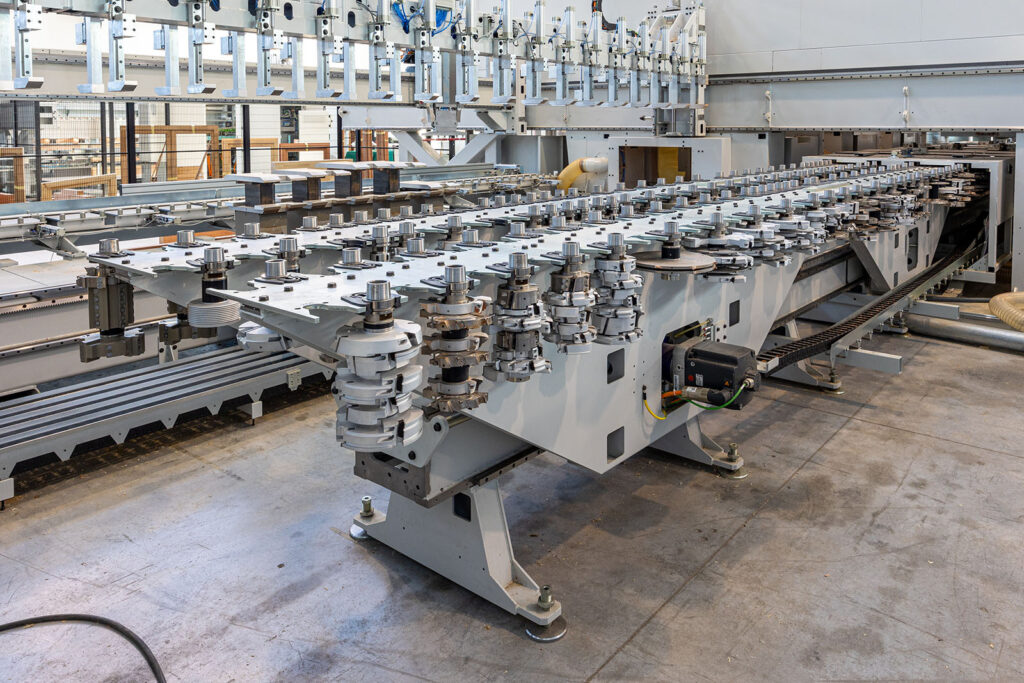

Tool storage: organisation and cleaning
The tool storage of this woodworking center offers impeccable organization and advanced protection:
- Modular capacity: from 128 to 256 position, to handle a large number of tools.
- Advanced cleaning systems: brushes, blowers and protective housing keep tools free of dust and chips.
- Space optimization: a structure designed to last overtime, ensuring efficiency and reliability

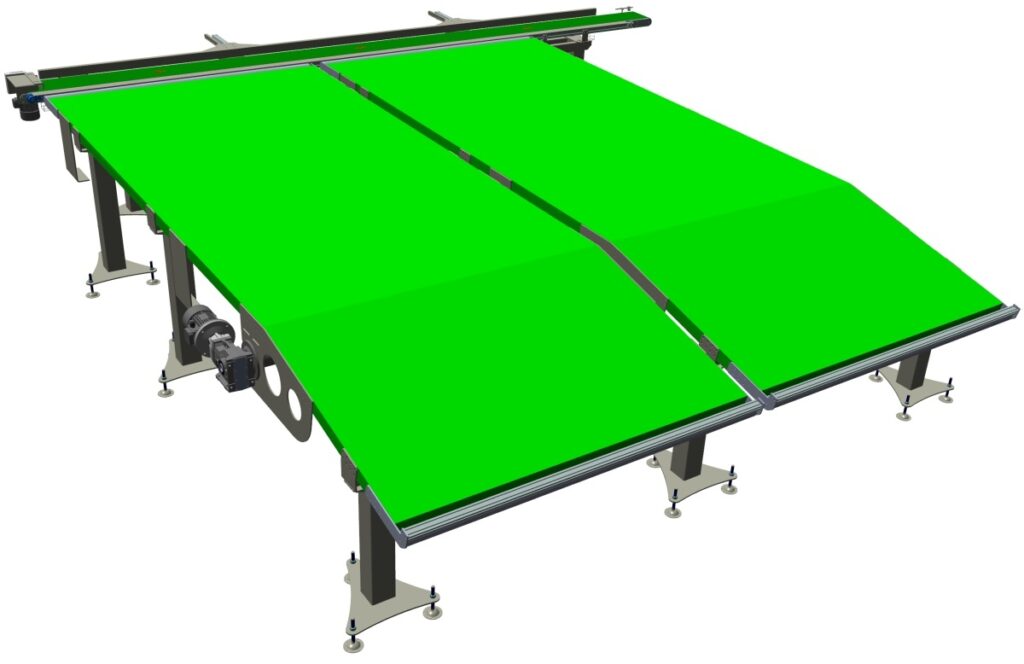

Automatic unloading and safety
- Motorized belt: accumulates finished pieces, optimizing logistics.
- CE-compliant perimeter protection: ensure a safe and regulatory working environment.

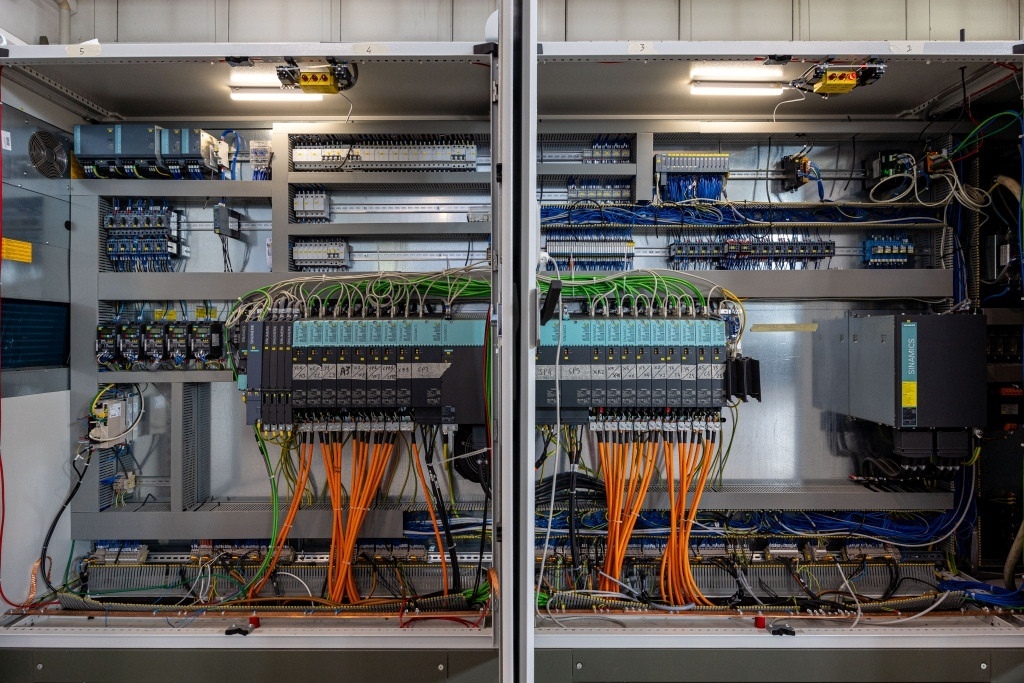

Numerical control SINUMERIK ONE
The machine is equipped with the advanced numerical controlSINUMERIK ONE from Siemens, which represents the ultimate in CNC technology:
- Integrated PLC SIMATIC S7-1500F: cycle times up to 10 times faster than previous mode.
- Increased productivity: improves speed, flexibility and overall machine efficiency.
Why Choose Woodpecker Performance 5?
Top of the range
Designed for industrial manufacturers with full automation requirements and large volumes.
Maximum production capacity
Thanks to five working units and an advanced configuration.
Precision and reliability
It guarantees flawless results even in the most complex projects.
Contact us today to find out how the Woodpecker Performance 5 woodworking centre can take your production department to a new level.
